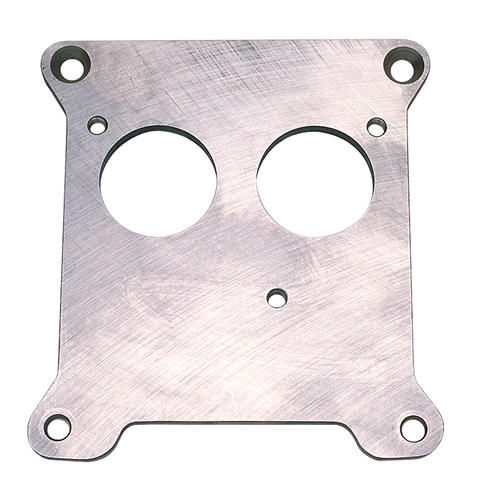

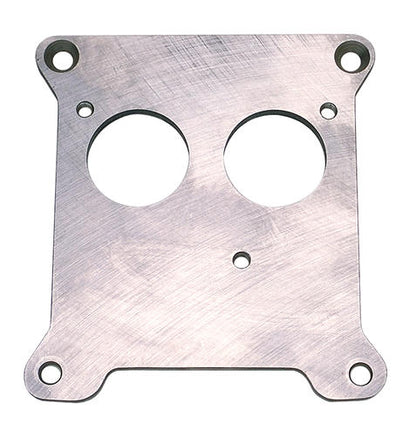

Trans-Dapt Throttle Body Adapter Chevy/GMC TBI To Holley 4 Barrel 4V Rear 2200

Trans Dapt Performance Products
Throttle Body Adapters
#2200
Fits: 1986-1995 Chevy, GMC 4.3L V6 and Small Block V8 1.75" TBI Unit or Holley TBI System
To Holley Square Bore 3 or 4 Barrel Manifold
Mounts Throttle Body To the Rear of The Intake Manifold

Adapter Style: Individual venturi ports
Adapter Material: Steel
Adapter Finish: Natural
Adapter Thckness: 1/4"
Gaskets Included: Yes
Hardware Included: Yes
Quantity: Sold individually.
Notes: Rear mount design moves TBI over back intake runners.

TBI Center To Center Bolt Spacing: 4 1/4", 2 5/8"
Holley Square Bore Center To Center Bolt Spacing: 5 5/8", 5 1/8"

Bolt Spacing Is Measured From Center Of Bolt Hole to Center Of Bolt Hole. (See Diagram Pics for Representation)

Trans-Dapt Performance throttle body to carburetor adapters allow you to mount an OEM or Holley TBI unit on almost any manifold, saving you the expense of buying a different manifold. Made from high-quality material, these adapters provide a smooth transition from the throttle body to the intake manifold for trouble-free operation.
