Remflex Exhaust Gaskets 1965-1990 Chevy V8 Big Block Round Port 396 402 427 454 502 Dart Brodix 2002

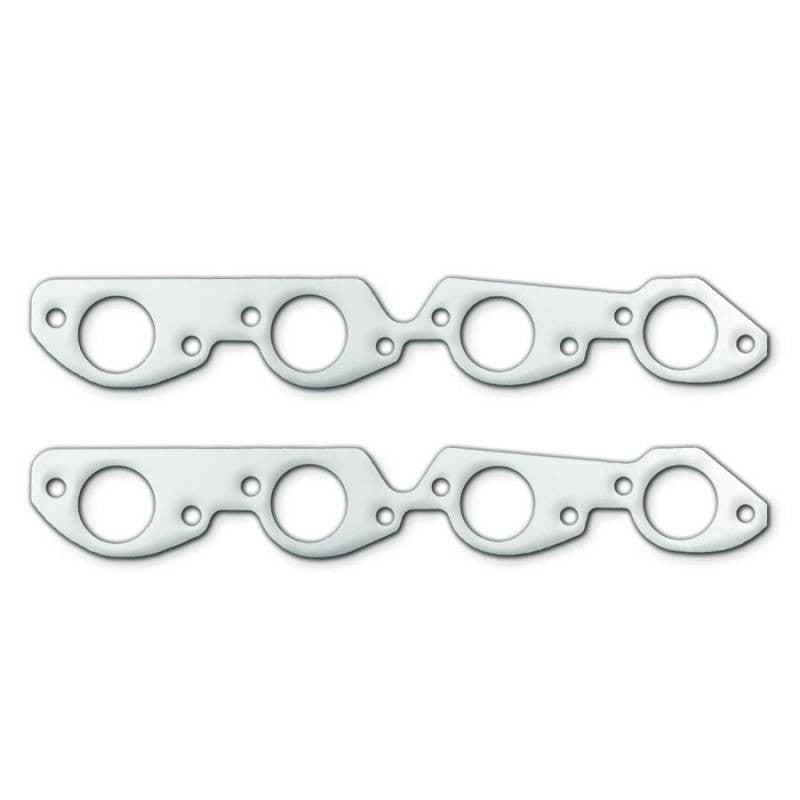

Remflex Exhaust Gaskets
#2002 or RF2002
Fits: 1965-1990 Chevy BB V8 396/6.5L, 402/6.6L, 427/7.0L, 454/7.4L, 502/8.2L
1-7/8” Diameter Round Port
For Header Applications
2/Set
Suggested Torque: 20-25 Ft. Lbs

Cross Reference:
Equivalent to
Fel-Pro #1411
MR. Gasket #152, 5911, 7157 & 7407G
Dart #65221000 & 65224000 (There are 5 Different port size Gaskets available that will cross reference to these dart parts)

Also Fits: Dart 18 Degree race Series & BBC Standard Port Heads, Dart BBC Iron Eagle 308/345/330 CNC, Dart Pro 2 380, Dart race Series 320-360 & 370 Oval port 18 Degree Heads, Dart Big Cheif Pro 180 & 140 11 Degree, Dart Pro 1 275/310/325/345/525 MMR/335 CNC & 355 CNC Heads, Dart "SHP" Special High Performance Heads
Brodix Jessie James BB Series 26 Degree, Race Rite Series 26 Degree, BB-1/ BB-2 & BB-2 Plus Series 26 Degree, BB-2/ BB-2 XTRA & BB-3 Series 26 Degree Heads, BB-3 XTRA Series 24 Degree, BB-4 & BB-5 Series 24 Degree Heads




Remflex Performance Promise

Seals Warped Flanges:

Remflex exhaust gaskets come in a standard 1/8-inch thickness and are designed to crush 50%. This allows them to fill gaps in the flange surface up to 1/16-inch!

Wont Burn Out:

100% flexible graphite construction means Remflex gaskets are good for up to 3,000 degrees F”far exceeding that of any vehicles exhaust system temperature! 50% Crush

No Re-Torquing Necessary:

Remflex exhaust gaskets rebound 30%, creating an optimum seal that eliminates the need to re-torque!

About Remflex

Remflexs unique flexible graphite material has been proven for more than 30 years in industrial applications, where temperatures routinely exceed 2,000 degrees”day after day, week after week, year after year. Now, were bringing this technology to enthusiasts of all kinds to eliminate exhaust leaks for good! Whether you have an old pick-up that needs a manifold gasket, or a race car with custom-built headers, you can be assured that Remflex exhaust gaskets will work properly the first time, every time.

The Science

Remflex gaskets work because they solve the two main problems associated with sealing an exhaust flange: Warping, and gasket failure.

Warped Reality

A common misconception is that, if you spend a lot of money for high-quality headers with thick flanges, leaks will not be an issue. In truth, a thicker flange does help, but it cant solve the problem of warping altogether. Constant thermal cycling, especially in high performance and/or high-load environments, causes warping of header flanges and cast iron exhaust manifolds--even the exhaust flange of the cylinder head itself.

Once the sealing surface is warped, leaks are imminent”and once there is a leak, pitting of the exhaust port sealing surface usually follows. A new set of average gaskets wont fix the problem”but Remflex gaskets, with a 50% crush built in”can seal gaps as large as 1/16-inch. And unlike traditional gaskets, they wont shrink, so they never require re-torquing.

If you cant take the heat¦

Curiously, the number one cause of exhaust gasket failure is heat”the very thing exhaust gaskets are supposed to withstand. Thats because traditional exhaust gaskets are made of composite materials”blends of natural fibers and synthetic compounds that are bound together using rubber. Simply put, its only a matter of time until the extreme temperature in the vehicles exhaust system burns the gaskets composite materials away, resulting in an exhaust leak.

Youve no doubt experienced the pungent odor that arises from the engine compartment after you install a new set of the top-brand exhaust gaskets. Thats the smell of the rubber binders in the composite materials that begin to burn out almost immediately. And once the rubber overheats, it begins to shrink, as well has harden. Thats why you are instructed to re-torque the gaskets regularly, and why an exhaust leak will develop if you dont. Remflex exhaust gaskets are made from 100% flexible graphite and can withstand up to 3,000 degrees F”so they are not affected by exhaust system, and wont burn out, shrink, or leak. Not now, not ever!
