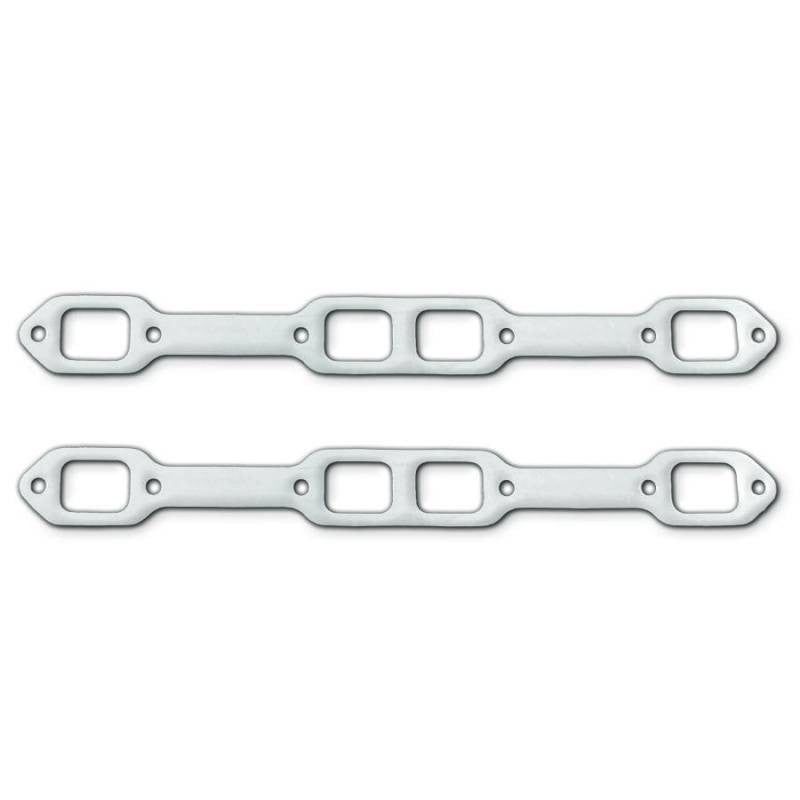

Remflex Exhaust Gaskets 1957-1980 Mopar Dodge 361/383/400/413/426/440 6002

Remflex Exhaust Gaskets
#6002 or RF6002
Fits:Mopar
361ci 1957-1967
383ci 1959-1971 Jensen 1970-1971
400ci 1972-1980
413ci 1959-1965
426ci Wedge 1963-1965
440ci 1966-1980 Jensen 1972-1976
Also Fits: Mopar B1/BS & B1 MO Big Block Heads
1-7/8" x 1-3/8" Square Port
2/set
Suggested Torque: 20 Ft Lbs.

Cross Reference
Equivalent to
Fel-Pro #1414
MR. Gasket #351, 5936 & 7167
Hedman #27900
Edelbrock #7226
Percy's 66036, 68036
Hooker 10838 or 10838HKR
SCE 4064, 264080 and 4164
Flatout 7033, 7033C, 7037C, 7037, 7037S
Flowtech 99360 or 99360FLT
Doug's H9151
Cometic C5902, C5619
Patriot H7595






Remflex Performance Promise

Seals Warped Flanges:

Remflex exhaust gaskets come in a standard 1/8-inch thickness and are designed to crush 50%. This allows them to fill gaps in the flange surface up to 1/16-inch!

Wont Burn Out:

100% flexible graphite construction means Remflex gaskets are good for up to 3,000 degrees F”far exceeding that of any vehicles exhaust system temperature! 50% Crush

No Re-Torquing Necessary:

Remflex exhaust gaskets rebound 30%, creating an optimum seal that eliminates the need to re-torque!

About Remflex

Remflexs unique flexible graphite material has been proven for more than 30 years in industrial applications, where temperatures routinely exceed 2,000 degrees”day after day, week after week, year after year. Now, were bringing this technology to enthusiasts of all kinds to eliminate exhaust leaks for good! Whether you have an old pick-up that needs a manifold gasket, or a race car with custom-built headers, you can be assured that Remflex exhaust gaskets will work properly the first time, every time.

The Science

Remflex gaskets work because they solve the two main problems associated with sealing an exhaust flange: Warping, and gasket failure.

Warped Reality

A common misconception is that, if you spend a lot of money for high-quality headers with thick flanges, leaks will not be an issue. In truth, a thicker flange does help, but it cant solve the problem of warping altogether. Constant thermal cycling, especially in high performance and/or high-load environments, causes warping of header flanges and cast iron exhaust manifolds--even the exhaust flange of the cylinder head itself.

Once the sealing surface is warped, leaks are imminent”and once there is a leak, pitting of the exhaust port sealing surface usually follows. A new set of average gaskets wont fix the problem”but Remflex gaskets, with a 50% crush built in”can seal gaps as large as 1/16-inch. And unlike traditional gaskets, they wont shrink, so they never require re-torquing.

If you cant take the heat¦

Curiously, the number one cause of exhaust gasket failure is heat”the very thing exhaust gaskets are supposed to withstand. Thats because traditional exhaust gaskets are made of composite materials”blends of natural fibers and synthetic compounds that are bound together using rubber. Simply put, its only a matter of time until the extreme temperature in the vehicles exhaust system burns the gaskets composite materials away, resulting in an exhaust leak.

Youve no doubt experienced the pungent odor that arises from the engine compartment after you install a new set of the top-brand exhaust gaskets. Thats the smell of the rubber binders in the composite materials that begin to burn out almost immediately. And once the rubber overheats, it begins to shrink, as well has harden. Thats why you are instructed to re-torque the gaskets regularly, and why an exhaust leak will develop if you dont. Remflex exhaust gaskets are made from 100% flexible graphite and can withstand up to 3,000 degrees F”so they are not affected by exhaust system, and wont burn out, shrink, or leak. Not now, not ever!
