Rare Parts Right Outer Tie Rod End 1967-1970 Chevy GMC Jimmy Blazer K10 K20 K15 K25 25483

Rare Parts Right Outer Tie Rod End 1967-1970 Chevy GMC Jimmy Blazer K10 K20 K15 K25 25483

SKU:RPIS-25483

Regular price $120.99
Regular price Sale price $120.99
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

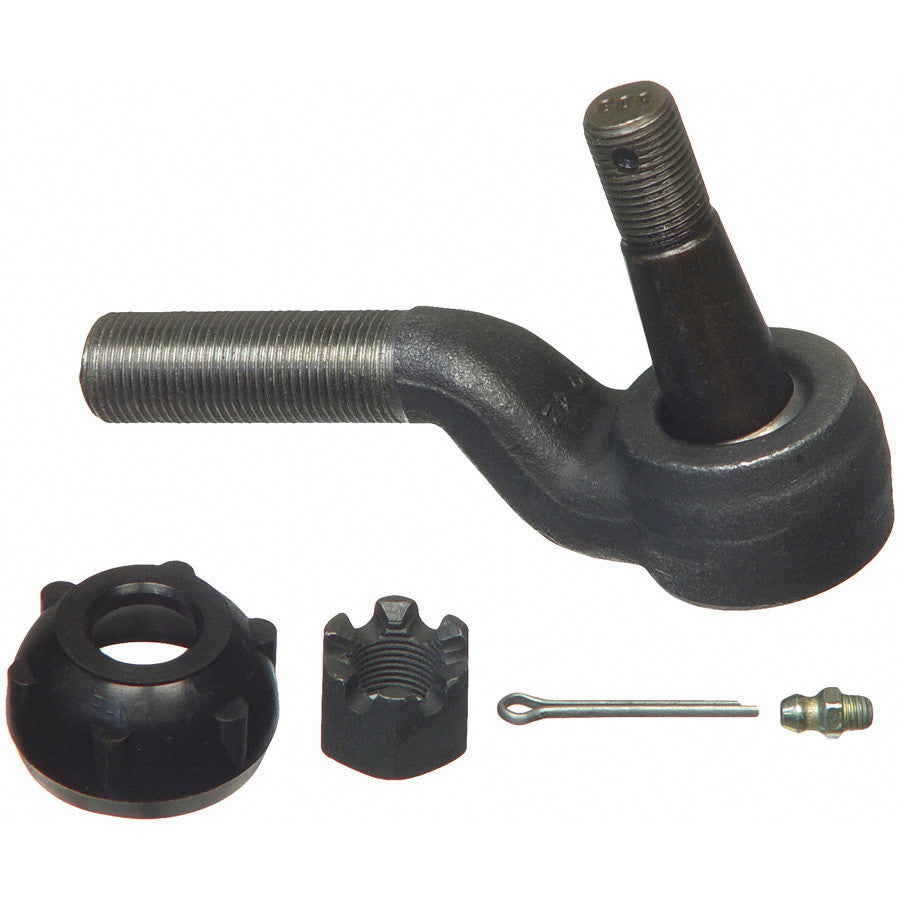

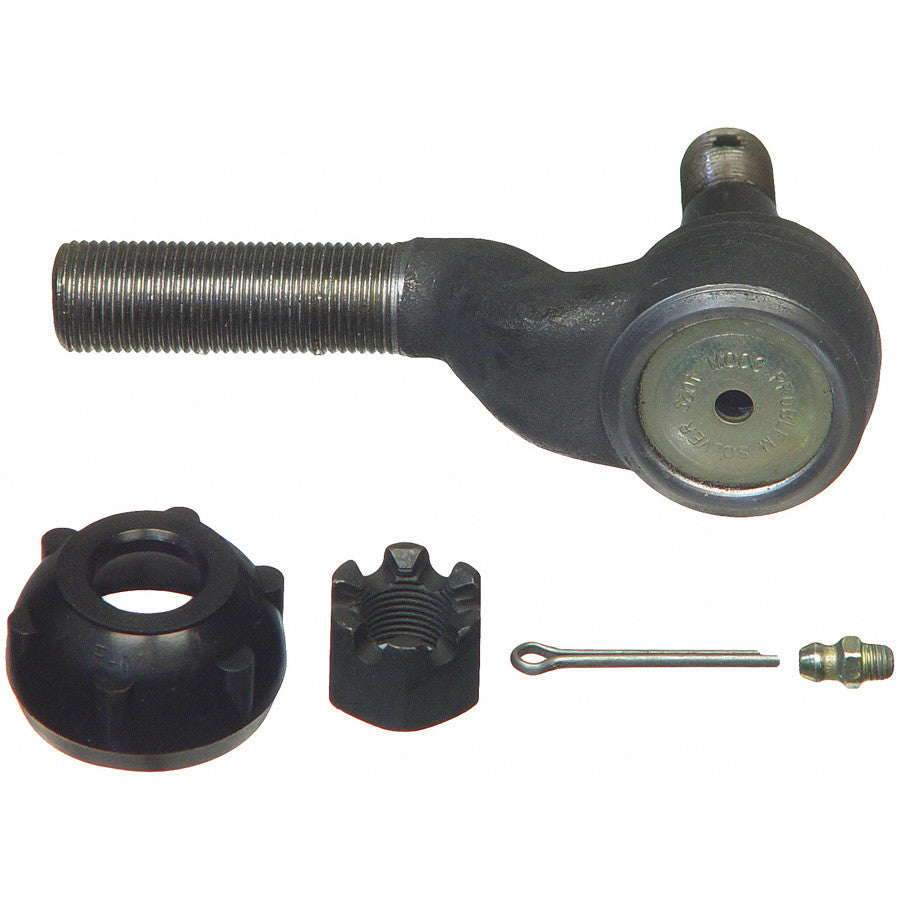

New Rare Parts Tie Rod End

1967-1970 Chevy/GMC Jimmy, Blazer, K1,0 K20, K15, K25,K1500, K2500 Pickup and Suburban (See Extended Description Below For Complete Vehicle Application/Fitment Information)

Position: Right Outer

Tie Rods Include (When Applicable): Castle Nut, Cotter Pin, Zerk Fitting

Sold Individually

Rare Parts #25483 or RP25483

Specifications:
Rod Thread    3/4-16
Bar Size    0.741
RH/LH    LH
Male or Female    Male
Large Dia. Taper    0.773
Small Dia. Taper    0.664
Stud Thread Size    5/8-18
Stud Length    0.896
Length Ctr. Stud to End    4.380
Config.    Bent
Greaseable    Yes
Dust Boot Included    Yes
Package Contents    1 Tie Rod End, 1 Dust Boot, 1 Castle Nut, 1 Cotter Pin, 1 Grease Fitting

Fits:
1970; GMC; Jimmy 4WD Front Right Outer
1970; GMC; Jimmy AWD Front Right Outer
1971; GMC; Jimmy 4WD Front Right Outer
1971; GMC; Jimmy AWD Front Right Outer
1972; GMC; Jimmy 4WD Front Right Outer
1972; GMC; Jimmy AWD Front Right Outer
1967; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1967; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1968; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1968; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1969; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1969; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1970; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1970; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1971; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1971; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1972; Chevrolet; K10 Pickup Front Right Outer 1/2 Ton
1972; Chevrolet; K10 Suburban Front Right Outer 1/2 Ton
1967; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1967; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1967; Chevrolet; K20 Panel Front Right Outer 3/4 Ton
1968; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1968; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1969; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1969; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1970; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1970; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1971; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1971; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1972; Chevrolet; K20 Pickup Front Right Outer 3/4 Ton
1972; Chevrolet; K20 Suburban Front Right Outer 3/4 Ton
1967; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1967; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1968; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1968; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1969; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1969; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1970; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1970; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1971; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1971; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1972; GMC; K15/K1500 Pickup 4WD Front Right Outer 1/2 TON
1972; GMC; K15/K1500 Suburban 4WD Front Right Outer 1/2 TON
1967; GMC; K25/K2500 Pickup Front Right Outer
1968; GMC; K25/K2500 Pickup Front Right Outer
1968; GMC; K25/K2500 Suburban Front Right Outer
1969; GMC; K25/K2500 Pickup Front Right Outer
1969; GMC; K25/K2500 Suburban Front Right Outer
1970; GMC; K25/K2500 Pickup Front Right Outer
1970; GMC; K25/K2500 Suburban Front Right Outer
1971; GMC; K25/K2500 Pickup Front Right Outer
1971; GMC; K25/K2500 Suburban Front Right Outer
1972; GMC; K25/K2500 Pickup Front Right Outer
1972; GMC; K25/K2500 Suburban Front Right Outer
1969; Chevrolet; Blazer 4WD Front Right Outer
1969; Chevrolet; Blazer AWD Front Right Outer
1970; Chevrolet; Blazer 4WD Front Right Outer
1970; Chevrolet; Blazer AWD Front Right Outer
1971; Chevrolet; Blazer 4WD Front Right Outer
1971; Chevrolet; Blazer AWD Front Right Outer
1972; Chevrolet; Blazer 4WD Front Right Outer
1972; Chevrolet; Blazer AWD Front Right Outer
