Rare Parts Refurbish Service Left Inner Tie Rod End 1936-1940 Cadillac Series 65/70/75/80/85/90 25144

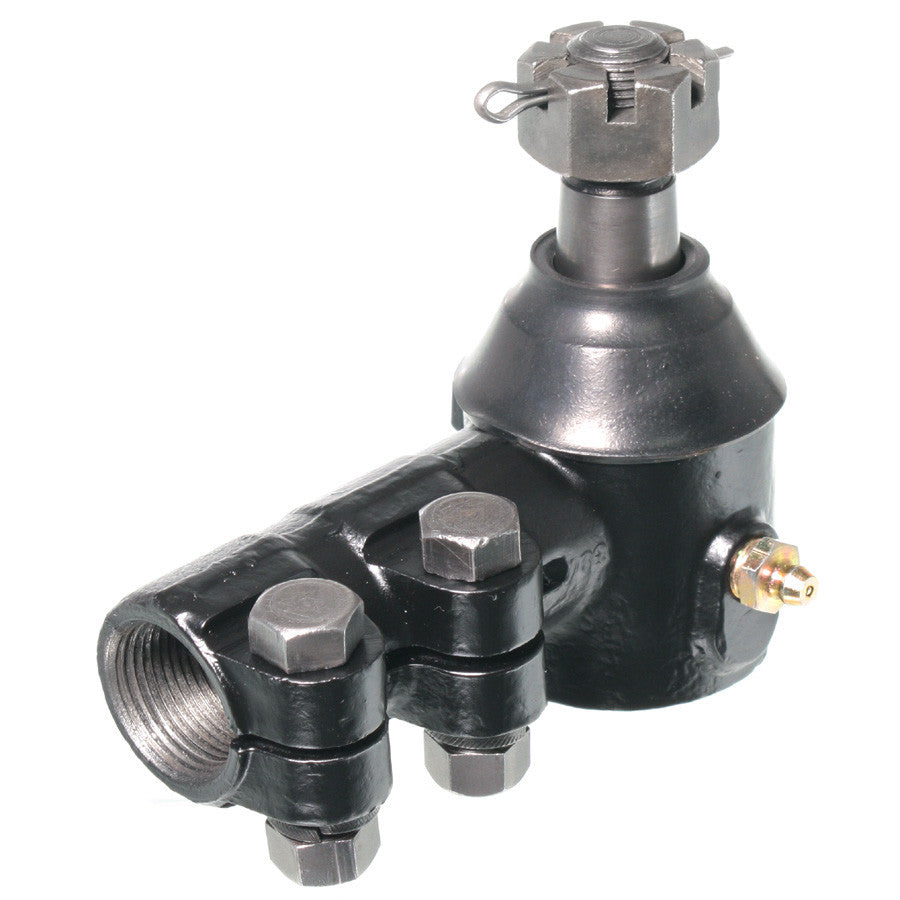

Rare Parts Front Left Inner Tie Rod End
Rare Parts #25144 or RP25144
1936-1940 Cadillac Series 65/70/75/80/85/90 (See extended description below for full vehicle application information)
Tie Rod End is grease-able
Includes hardware

Rod Ends Include New: Castle Nut, Zerk Fitting, Cotter Pin

NOTE: This item is an R & R (Refurbish and Return) only part. Buyer must send in their worn core for refurbishing.   FCRC Machine will handle all logistics in person with Rare Parts Personnel to get your parts back to you ASAP. The turnaround time for R & R service is typically 2-4 business days. An email will be sent with instructions for sending in your core once the purchase has been completed.

Specifications:
Rod Thread    1-16
Bar Size    1.356
Thread   RH
Male or Female    Female
Large Dia. Taper    0.813
Small Dia. Taper    0.696
Stud Thread Size    5/8-18
Stud Length    0.938
Length Ctr. Stud to End    3.688
Config.    Straight
Greaseable    Yes
Dust Boot Included    Yes

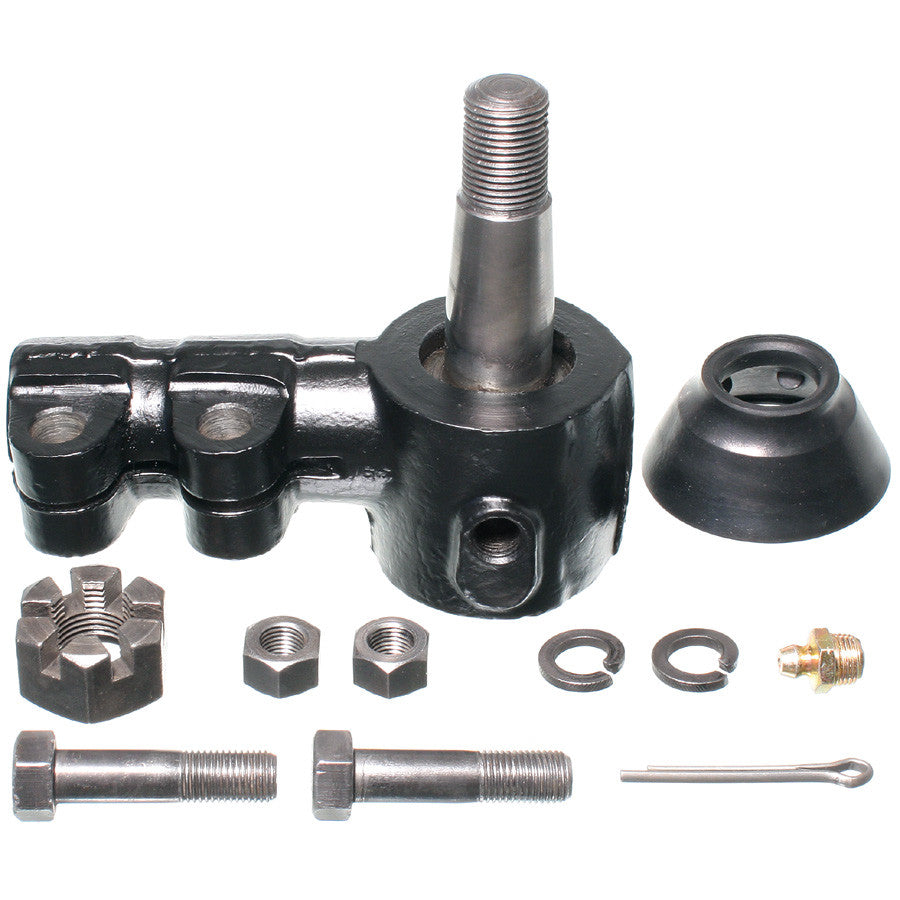

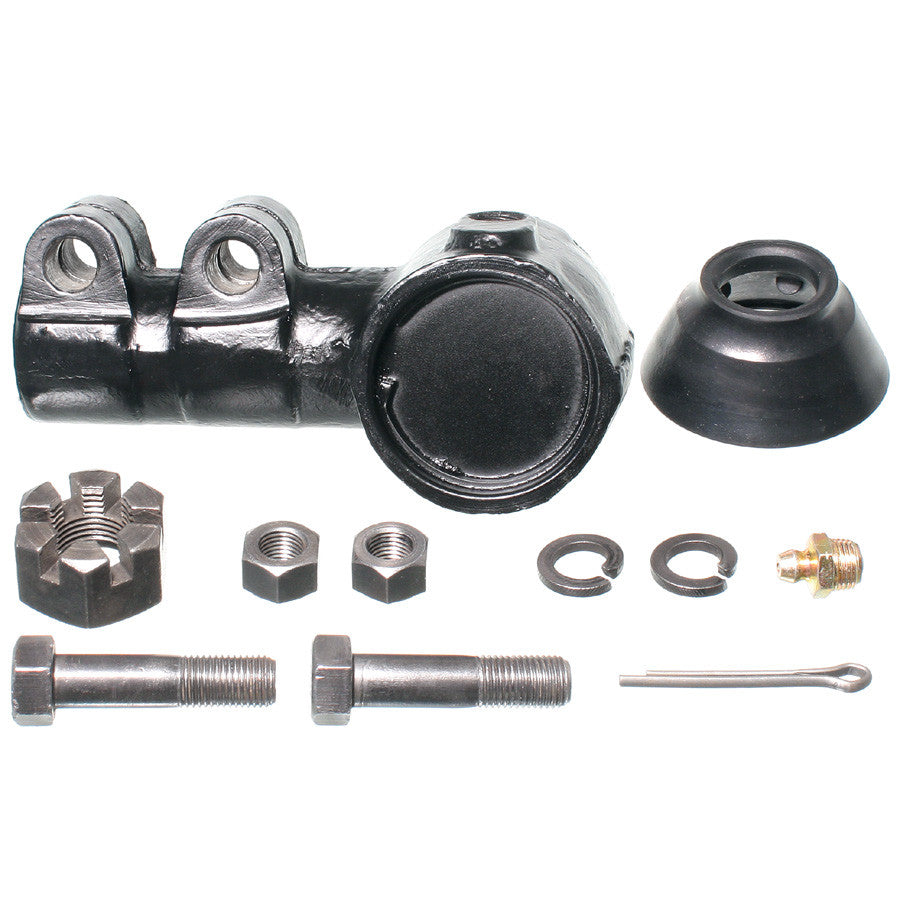

Package Contents    1 Tie Rod End, 1 Dust Boot, 1 Castle Nut, 1 Cotter Pin, 2 Bolts, 2 Nuts, 2 Lock Washers, 1 Grease Fitting

FITS:
1937; Cadillac; Series 65
1936; Cadillac; Series 75
1937; Cadillac; Series 75
1938; Cadillac; Series 75
1939; Cadillac; Series 75
1940; Cadillac; Series 75
1936; Cadillac; Series 70
1937; Cadillac; Series 70
1936; Cadillac; Series 80
1936; Cadillac; Series 85
1937; Cadillac; Series 85
1936; Cadillac; Series 90
1937; Cadillac; Series 90
1938; Cadillac; Series 90
1939; Cadillac; Series 90
1940; Cadillac; Series 90
