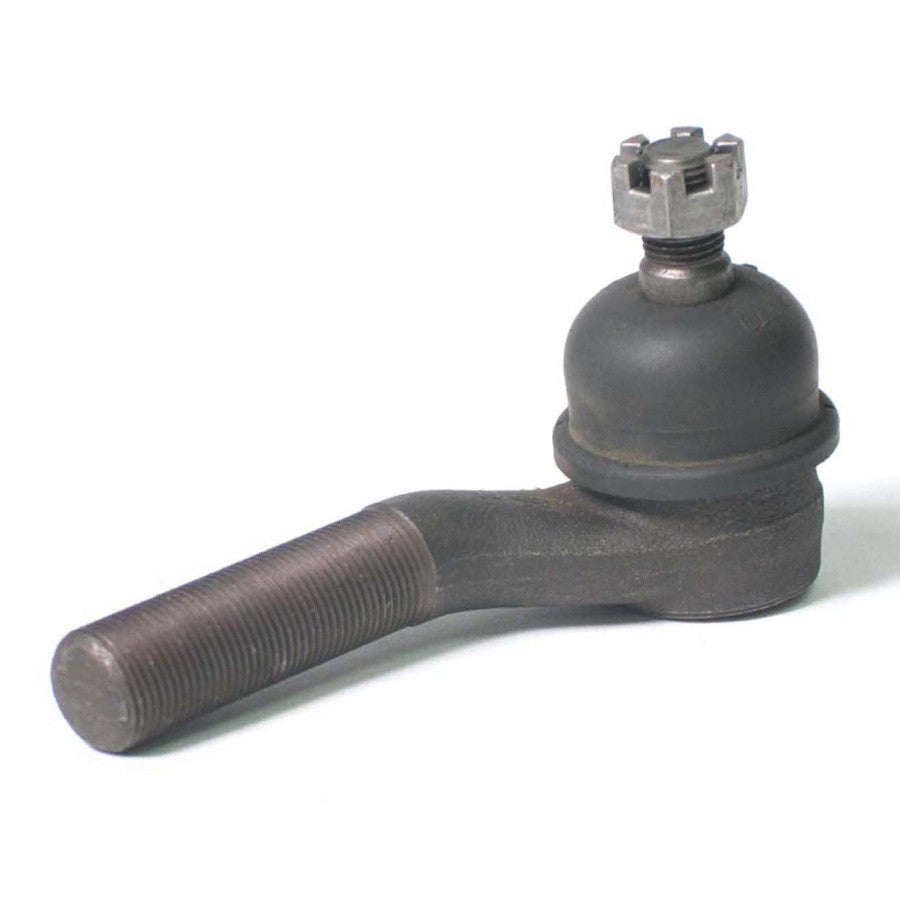

Rare Parts Left Outer Tie Rod End 1961-1962 Oldsmobile 25379

New Rare Parts Tie Rod End
1961-1962 Oldsmobile Vehicles
(See Extended Description Below For Complete Vehicle Application/Fitment Information)

Position: Left Outer

Sold Individually

Rare Parts #25379 or RP25379

NOTE: Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"

Specifications:
Rod Thread    3/4-18
Bar Size    0.862
RH/LH    RH
Male or Female    Male
Large Dia. Taper    0.626
Small Dia. Taper    0.554
Stud Thread Size    1/2-20
Stud Length    0.562
Length Ctr. Stud to End    4.290
Config.    Bent
Greaseable    Yes
Dust Boot Included    Yes
Package Contents    1 Tie Rod End, 1 Dust Boot, 1 Castle Nut, 1 Cotter Pin, 1 Grease Fitting

Fits:
1961; Oldsmobile; 98 Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Oldsmobile; 98 Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1961; Oldsmobile; Super 88 Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Oldsmobile; Super 88 Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1961; Oldsmobile; Fiesta Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Oldsmobile; Fiesta Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1961; Oldsmobile; Starfire Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Oldsmobile; Starfire Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1961; Oldsmobile; Dynamic Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Oldsmobile; Dynamic Front Left Outer Saginaw Design~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
