Rare Parts King Pin Set 1946-1952 Chevrolet GMC Trucks 30103

New Rare Parts King Pin Set
1946-1952 Chevrolet & GMC Trucks

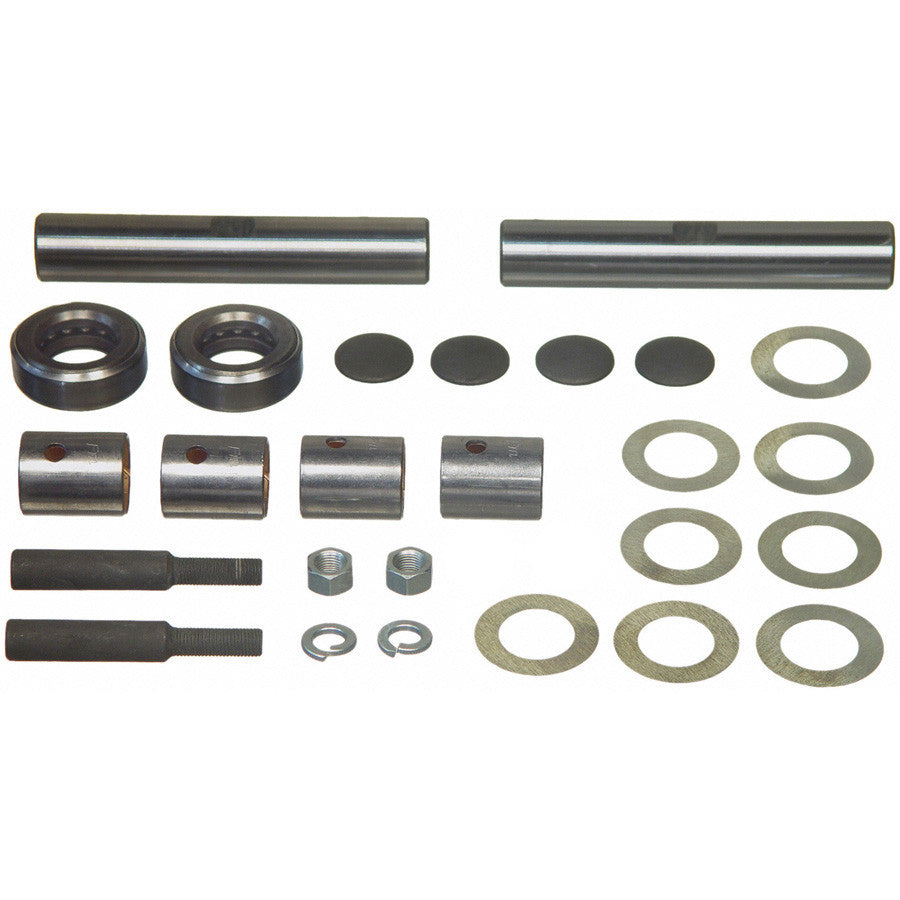

Includes Bushings, Bearings, Shims, Caps (All Items required to Rebuild and Replace the King Pins)
Rare Parts #30103 or RP30103

NOTE: Pin Length 5 1/8"

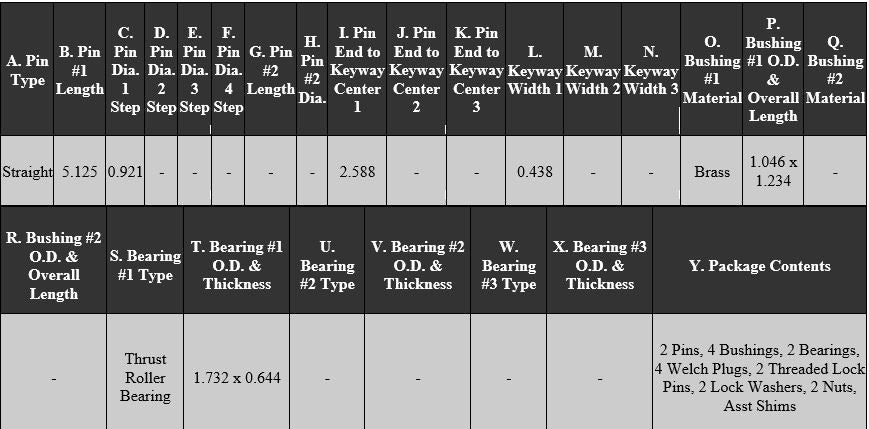

Specifications:
King Bolt Type    Straight
Pin #1 Length    5.125
Pin Dia. 1 Step     0.921
End of Pin to Center of Keyway 1    2.588
Width of Keyway 1    0.438
Bushing #1 Material    Brass
Bushing #1 O.D. & Overall Length    1.046 x 1.234
Bearing #1 Type    Thrust Roller Bearing
Bearing #1 O.D. & Thickness    1.732 x 0.644

FITS:
1946; Chevrolet; DR 3/4 TON~ Standard; Metal Bushings
1946; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1947; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1948; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1949; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1950; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1951; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1952; Chevrolet; Truck 3/4 TON~ Standard; Metal Bushings
1946; Chevrolet; DS 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1947; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1948; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1949; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1950; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1951; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1952; Chevrolet; Truck 1 TON PICKUP Std.; Metal Bushings; Excluding FU, GU, HU, JU, KU, M, Dubl- Duti Models
1947; GMC; 150-22 Standard; Metal Bushings; FC Models
1947; GMC; FC150 Standard; Metal Bushings; FC Models
1948; GMC; 150-22 Standard; Metal Bushings; FC Models
1948; GMC; FC150 Standard; Metal Bushings; FC Models
1949; GMC; 150-22 Standard; Metal Bushings; FC Models
1949; GMC; FC150 Standard; Metal Bushings; FC Models
1950; GMC; FC150 Standard; Metal Bushings; FC Models
1951; GMC; 150-22 Standard; Metal Bushings; FC Models
1951; GMC; FC150 Standard; Metal Bushings; FC Models
1951; GMC; 150 Standard; Metal Bushings; FC Models
1952; GMC; 150-22 Standard; Metal Bushings; FC Models
1952; GMC; FC150 Standard; Metal Bushings; FC Models
1952; GMC; 150 Standard; Metal Bushings; FC Models
