Rare Parts King Pin Set 1936 Chevrolet Chevy Standard 30131

New Rare Parts King Pin Set

Rare Parts #30131 or RP30131

Specifications:
King Bolt Type    Straight
Pin #1 Length    4.765
Pin Dia. 1 Step    0.734
End of Pin to Center of Keyway 1    2.354
Width of Keyway 1    0.469
Bushing #1 Material    Brass
Bushing #1 O.D. & Overall Length    0.858 x 1.256
Bearing #1 Type    Thrust Ball
Bearing #1 O.D. & Thickness    1.401 x 0.471

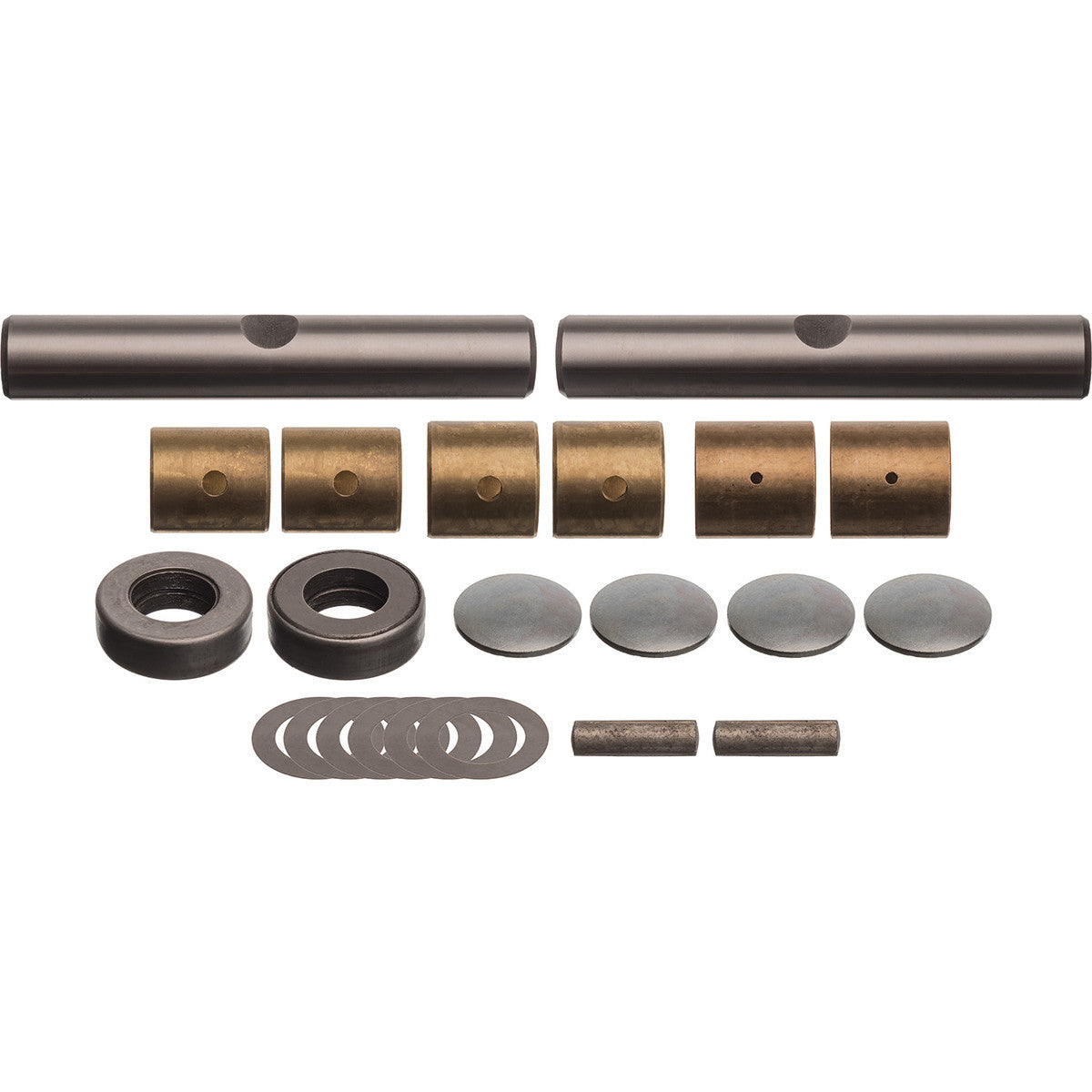

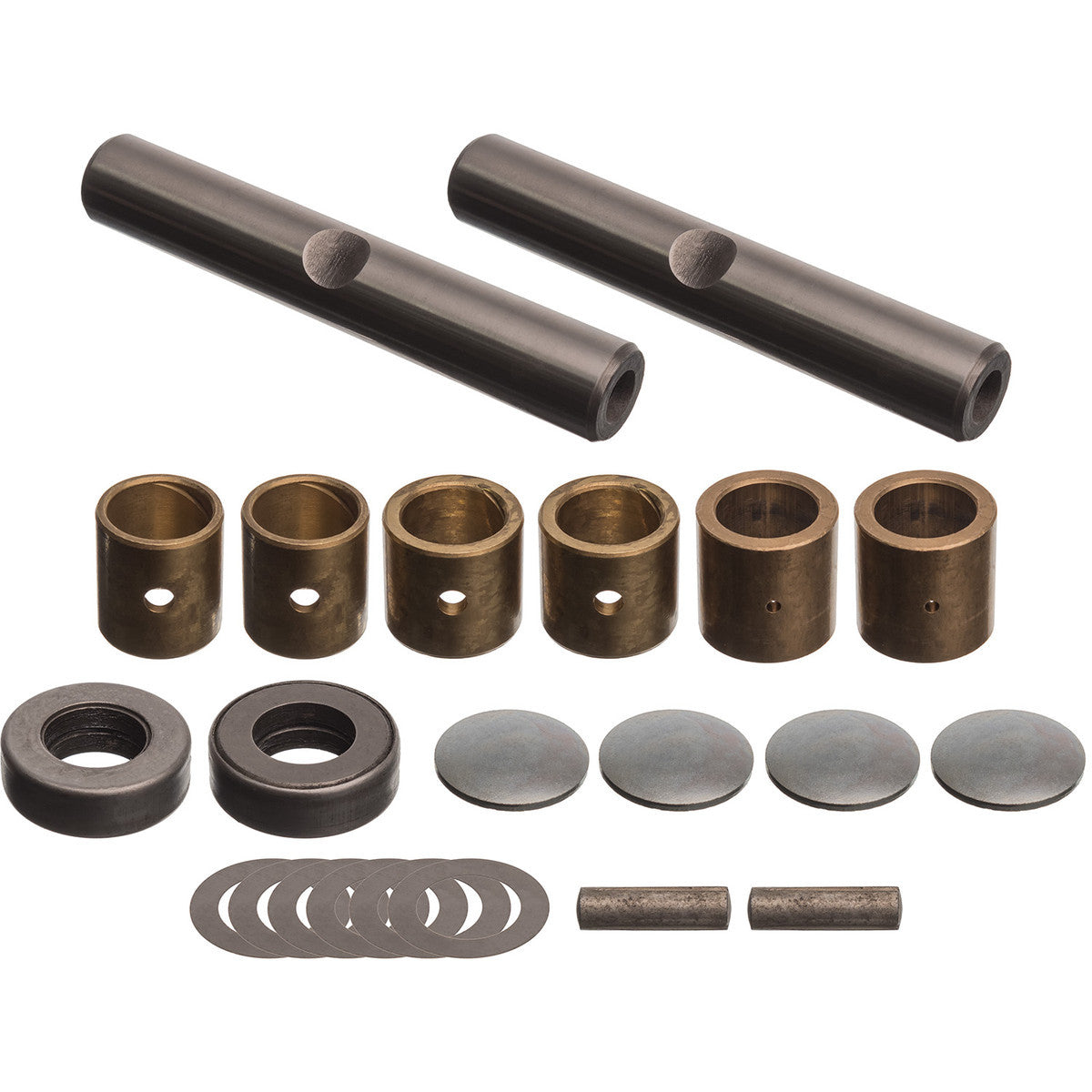

Package Contents    2 King Pins, 2 Bearings, 4 Bushings, 4 Welsch Plugs, 2 Threaded Lock Pins, 2 Lock Washers, 2 Nuts, Asst Shims

Fits:
1936    Chevrolet    Standard    FRONT   Standard FC Model; .734" Pin Dia.; 4.765" Long
