Rare Parts King Pin Set 1934-1936 Auburn 30647

New Rare Parts King Pin Set
Fits: 1934-1936 Auburn
(See Extended Description Below For Full Vehicle Application/Fitment Information )

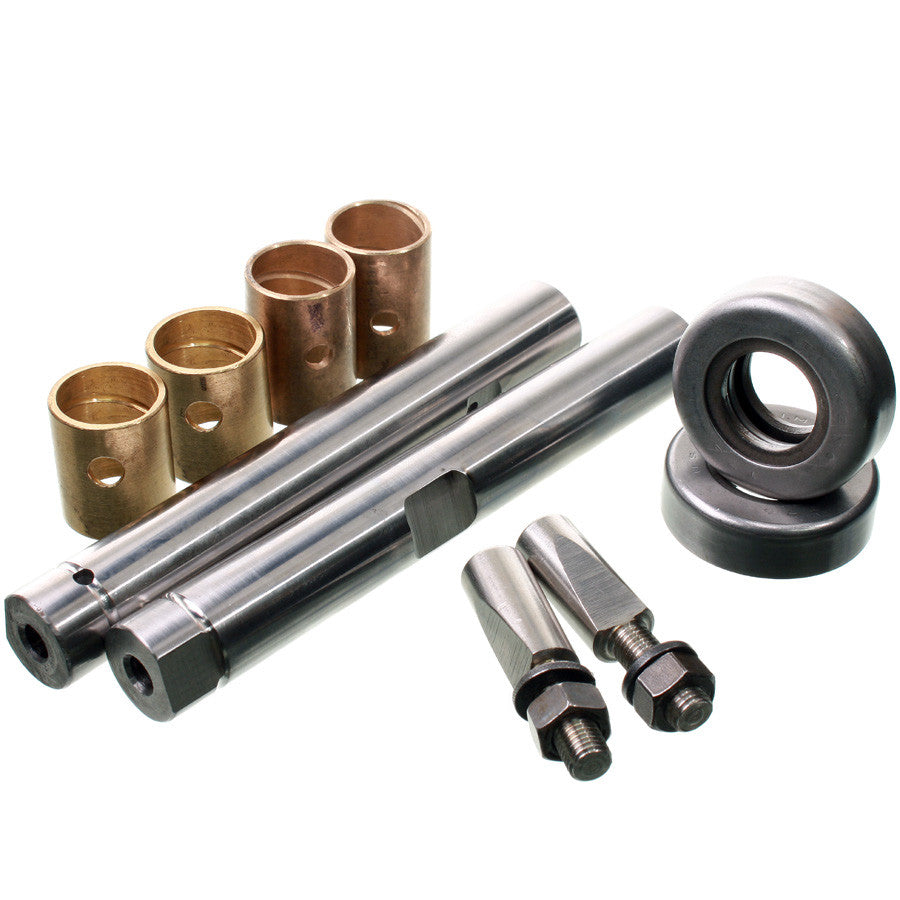

Includes Bushings, Bearings, Shims, Caps (All Items required to Rebuild and Replace the King Pins)

Rare Parts #30647 or RP30647

Specifications:
King Bolt Type    Straight
Pin #1 Length    5.535
Pin Dia. 1 Step     0.750
End of Pin to Center of Keyway 1    2.500
End of Pin to Center of Keyway 2    4.188
Width of Keyway 1    0.514
Width of Keyway 2    0.416
Bushing #1 Material    Bronze
Bushing #1 O.D. & Overall Length    0.878 x 1.259
Bushing #2 Material    Brass
Bushing #2 O.D. & Overall Length    0.880 x 1.065
Bearing #1 Type    Roller Bearing
Bearing #1 O.D. & Thickness    1.629 x 0.531

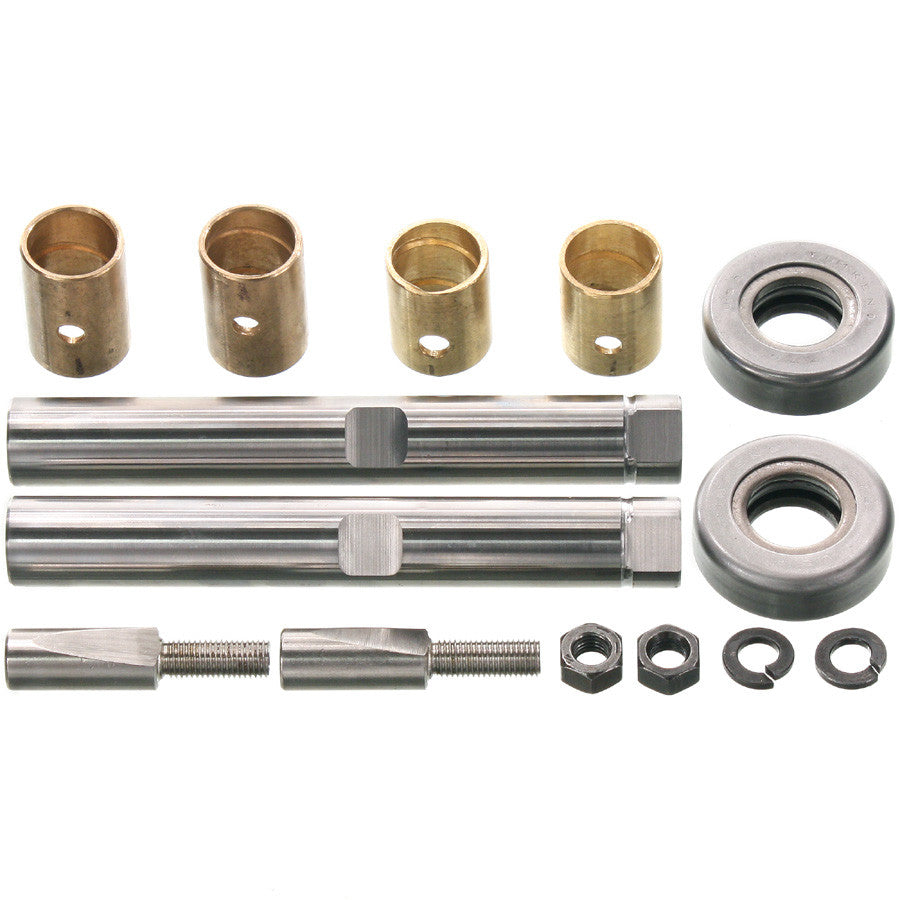

Package Contents    2 Pins, 4 Bushings, 2 Roller Bearings, 2 Lock Pins, 2 Lock Washers, 2 Nuts

Fits:
1934; Auburn; Model 850Y 0.749" x 5.535" Long King Pins
1934; Auburn; Model 850X 0.749" x 5.535" Long King Pins
1935; Auburn; Model 8-851 0.749" x 5.535" Long King Pins
1935; Auburn; Model 6-653 0.749" x 5.535" Long King Pins
1934; Auburn; Model 652Y 0.749" x 5.535" Long King Pins
1934; Auburn; Model 652X 0.749" x 5.535" Long King Pins
1936; Auburn; Model 6-654 0.749" x 5.535" Long King Pins
1936; Auburn; Model 8-852 0.749" x 5.535" Long King Pins
