Rare Parts King Pin Set 1926-1930 Chrysler E80 80L Imperial 30816

New Rare Parts King Pin Set
1926-1930 Chrysler E-80, 80 L & Imperial

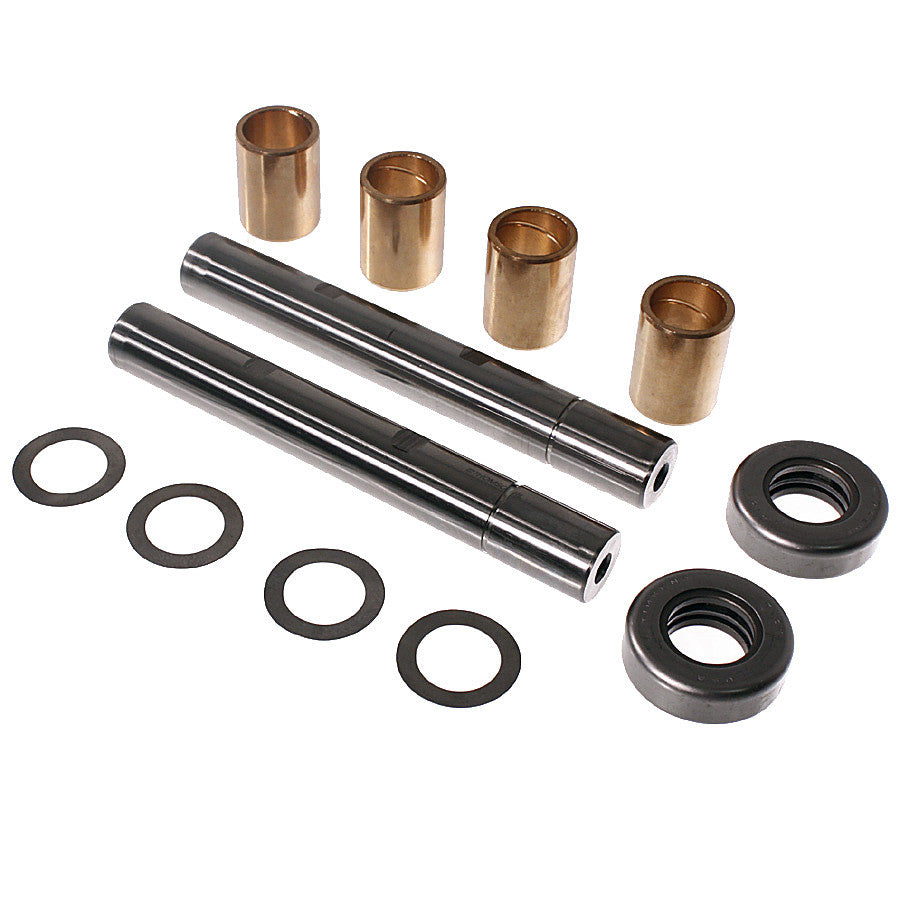

Includes Bushings, Bearings, Shims, Caps
Rare Parts #30816 or RP30816
Include Rare parts Limited Lifetime Warranty

NOTE: Models With 1" x 7 1/2" Pin; 1.246" Bushing O.D.

Specifications:
King Bolt Type    Straight
Pin #1 Length    7.490
Pin Dia. 1 Step    0.997
End of Pin to Center of Keyway 1    2.225
End of Pin to Center of Keyway 2    4.599
Width of Keyway 1    0.322
Width of Keyway 2    0.322
Bushing #1 Material    Brass
Bushing #1 O.D. & Overall Length    1.248 x 1.638
Bearing #1 Type    Thrust Roller
Bearing #1 O.D. & Thickness    1.997 x 0.626
Package Contents    2 King Pins, 4 Bushings, 2 Bearings, Asst Shims


Fits:
1926; Chrysler; Series E-80
1927; Chrysler; Series E-80 Imperial
1928; Chrysler; Series 80 L Imperial
1929; Chrysler; Series 80 L Imperial
1930; Chrysler; Series 80 L Imperial
