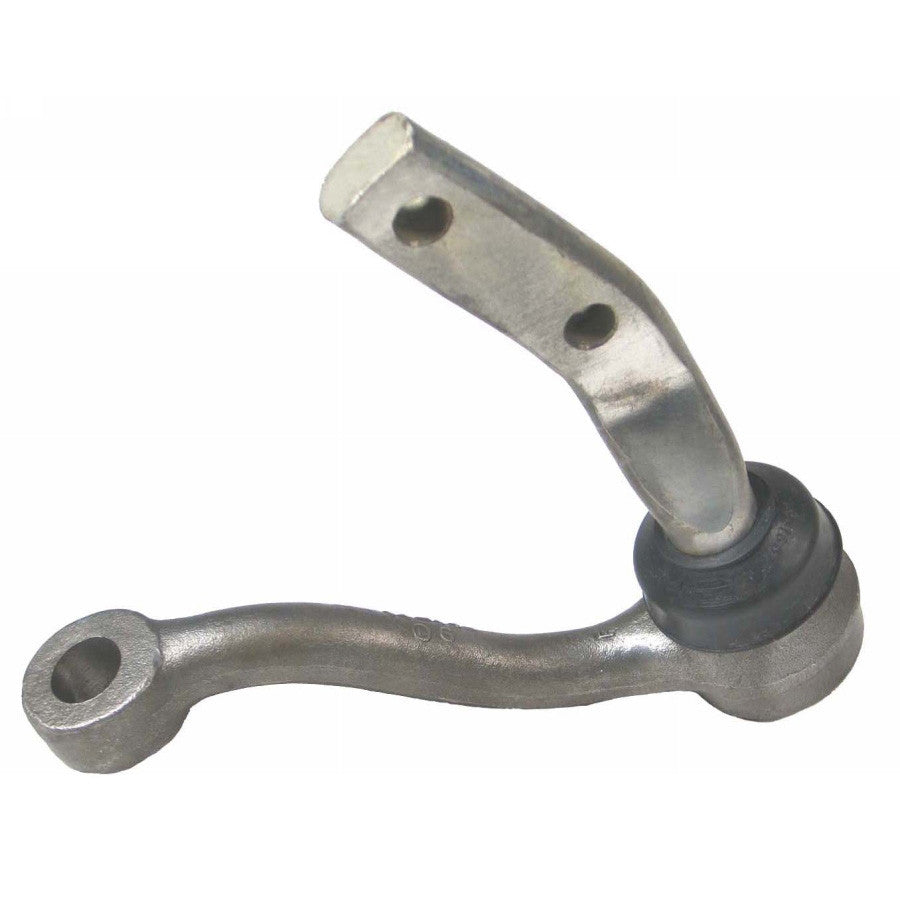

Rare Parts Idler Arm 1963-1964 Oldsmobile 98 Dynamic Jetstar Fiesta Super 88 20184

New Rare Parts Idler Arm
1963-1964 Oldsmobile Vehicles (See Extended Description Below For Full Vehicle Application/Fitment Information)
Idler Arms Include (When Applicable): Bushing, Castle nut, Cotter Pin & Zerk Fitting
Rare Parts #20184 or RP20184

NOTE: Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"

Specifications:
Greaseable    Yes
Bracket Holes #    2
Length Ctr. to Ctr.    5.180
Hardware Included    No
Ball Design    Yes
Arm Type    Bent
Arm Fixture    Hole
Bracket Fixture    Ball
Arm Fixture Stud Thread/Hole Inside Dia.    0.554
Package Contents    1 Arm, 1 Bracket, 1 Dust Boot, 1 Grease Fitting

FITS:
1963; Oldsmobile; 98 Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; 98 Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Super 88 Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Super 88 Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Fiesta Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Starfire Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Starfire Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Dynamic Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Dynamic Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Jetstar 88 Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Jetstar I Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
