Rare Parts Idler Arm 1962-1968 Buick Riviera Wildcat Lesabre Invicta Electra 20189

Rare Parts Idler Arm 1962-1968 Buick Riviera Wildcat Lesabre Invicta Electra 20189

SKU:RPIS-20189

Regular price $199.99
Regular price Sale price $199.99
Sale Sold out
Shipping calculated at checkout.

Low stock: 8 left

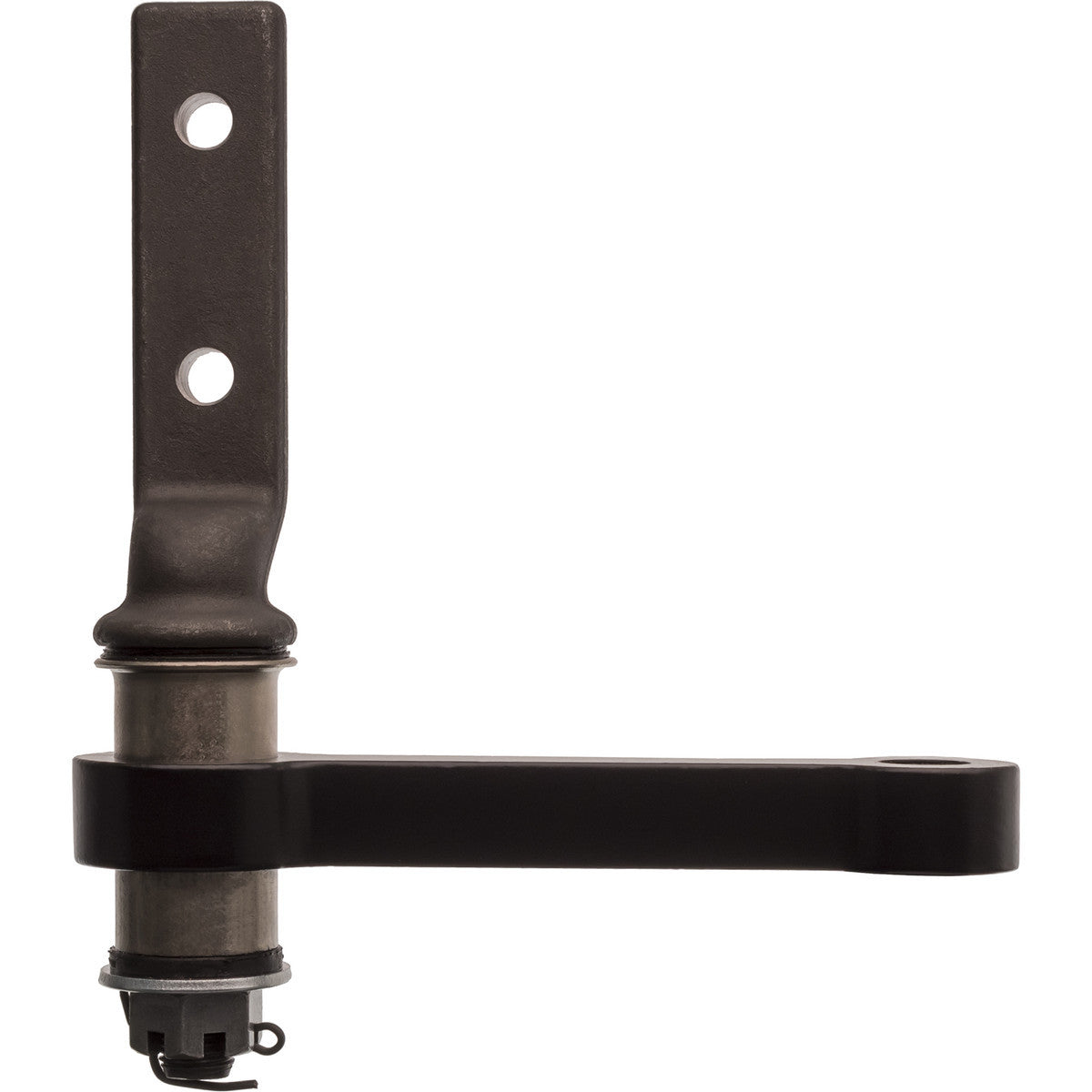

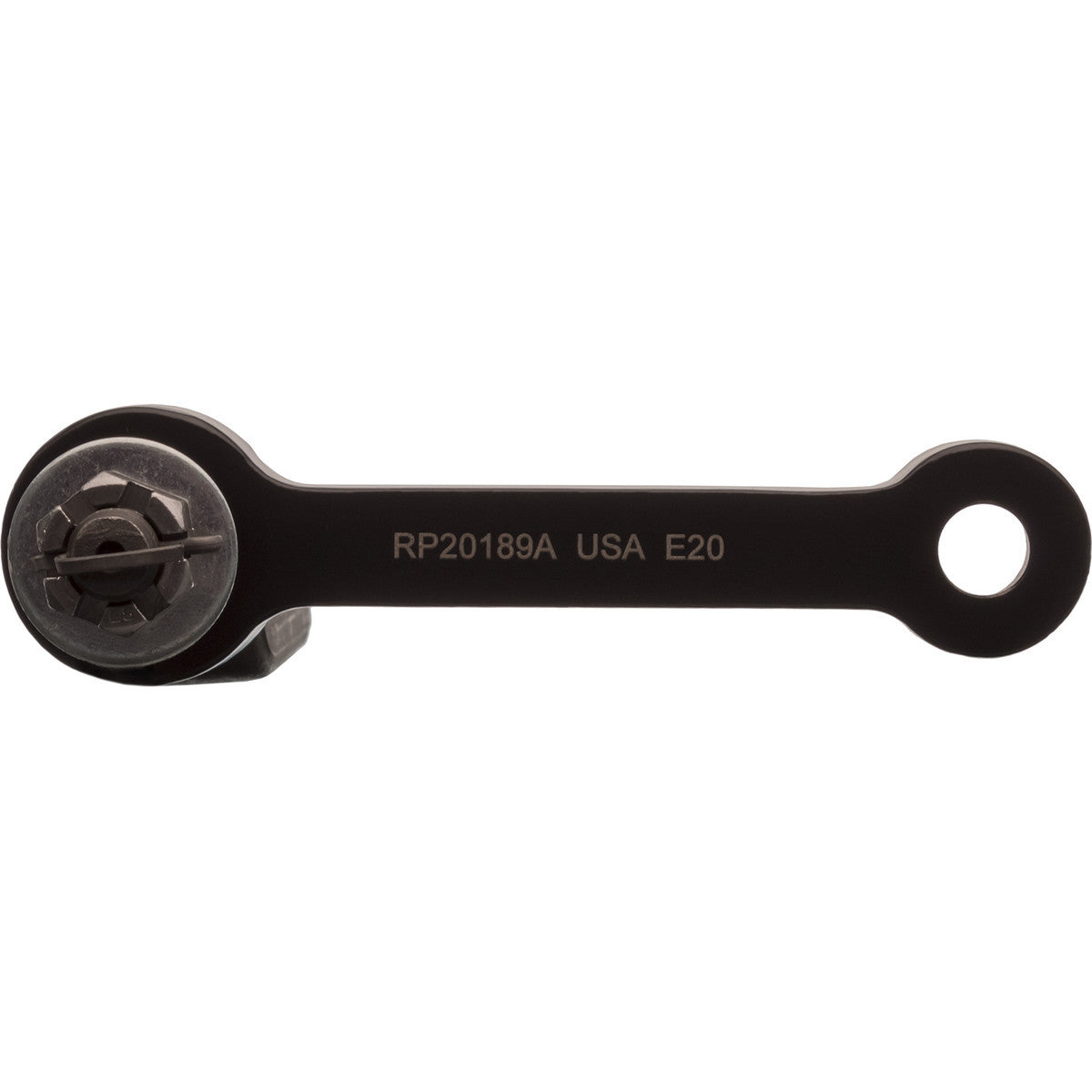

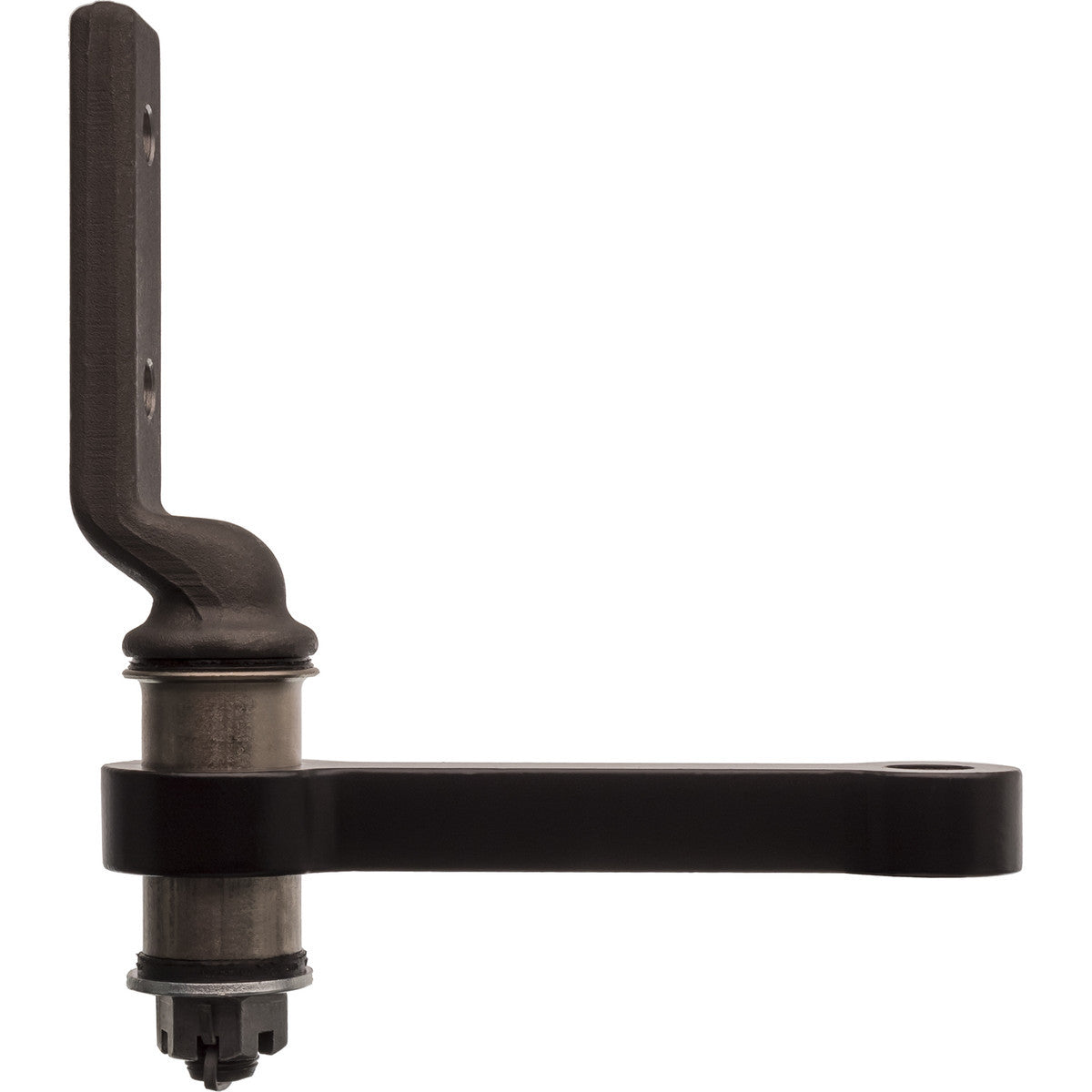

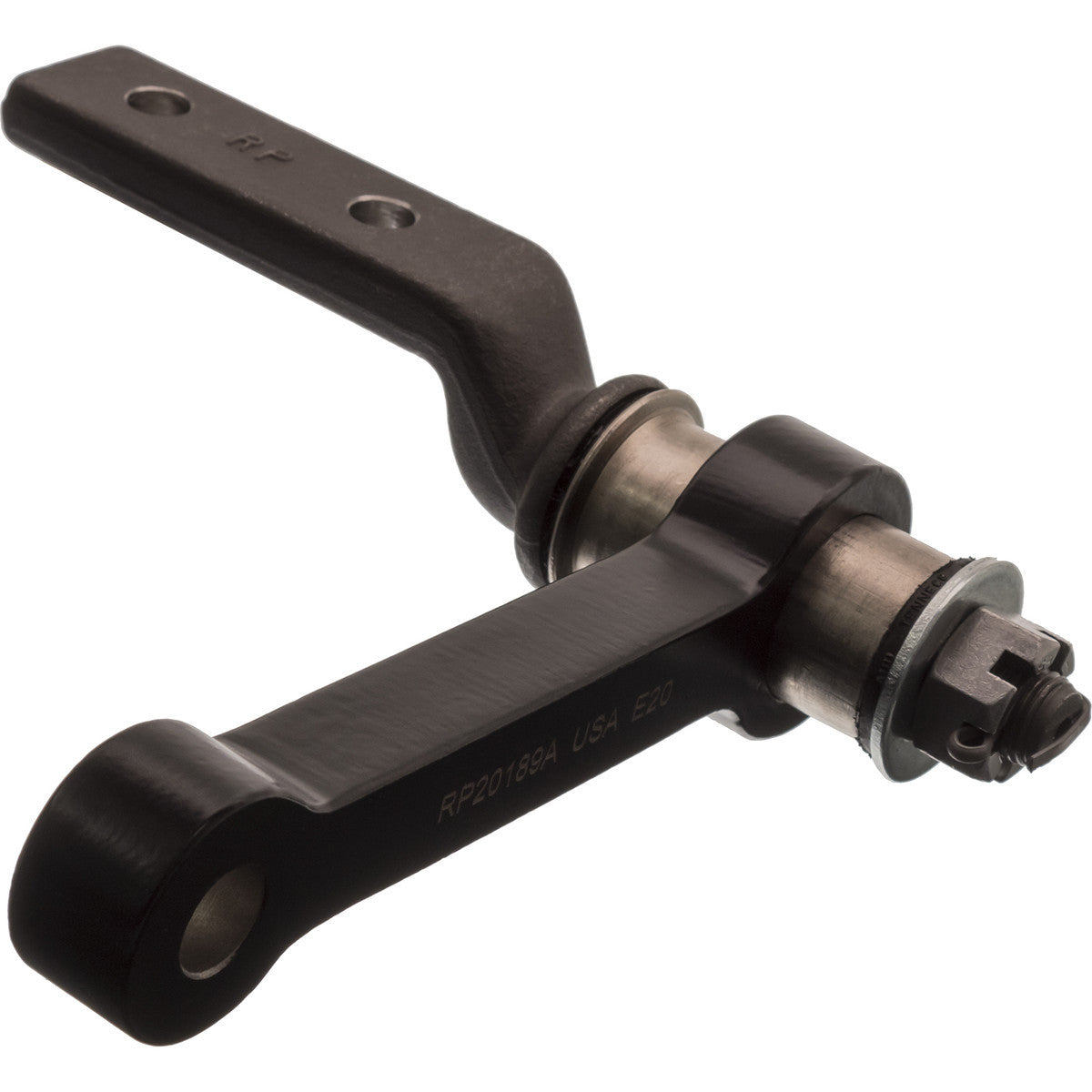

New Rare Parts Idler Arm
1962-1968 Buick Vehicles (See Extended Description Below For Full Vehicle Application/Fitment Information)
Idler Arms Include (When Applicable): Bushing, Castle nut, Cotter Pin
Rare Parts #20189 or RP20189

NOTE: Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"

NOTE: Some Application Will Only Fit Manual Steering, Some Will Only Fit Power Steering See Extended Description Below for Complete Information.

Specifications:
Greasable    Yes
Bracket Holes #    2
Length Ctr. to Ctr.    5.2
Hardware Included    Yes
Ball Design    No
Arm Type    Straight
Arm Fixture    Hole
Bracket Fixture    Hole
Arm Fixture Stud Thread/Hole Inside Dia.    0.534
Package Contents    1 Arm, 1 Bracket, 1 Castle Nut, 1 Cotter Pin, 1 Bushing Kit

FITS:
1962; Buick; Electra Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1963; Buick; Electra Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1964; Buick; Electra Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1965; Buick; Electra Manual
1966; Buick; Electra Manual
1962; Buick; Invicta Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Buick; Invicta Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1962; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1966; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1967; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1968; Buick; LeSabre Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587" Power
1963; Buick; Riviera
1964; Buick; Riviera
1965; Buick; Riviera
1966; Buick; Riviera Manual
1963; Buick; Wildcat Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Buick; Wildcat Front Saginaw Design Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1965; Buick; Wildcat Manual
1966; Buick; Wildcat Manual
