Rare Parts Heavy Duty Pitman Arm 1959-1960 Cadillac Deville Eldorado Fleetwood 75 Series 62 20289

Rare Parts Heavy Duty Pitman Arm 1959-1960 Cadillac Deville Eldorado Fleetwood 75 Series 62 20289

SKU:RPIS-20289

Regular price $69.99
Regular price Sale price $69.99
Sale Sold out
Shipping calculated at checkout.

11 in stock

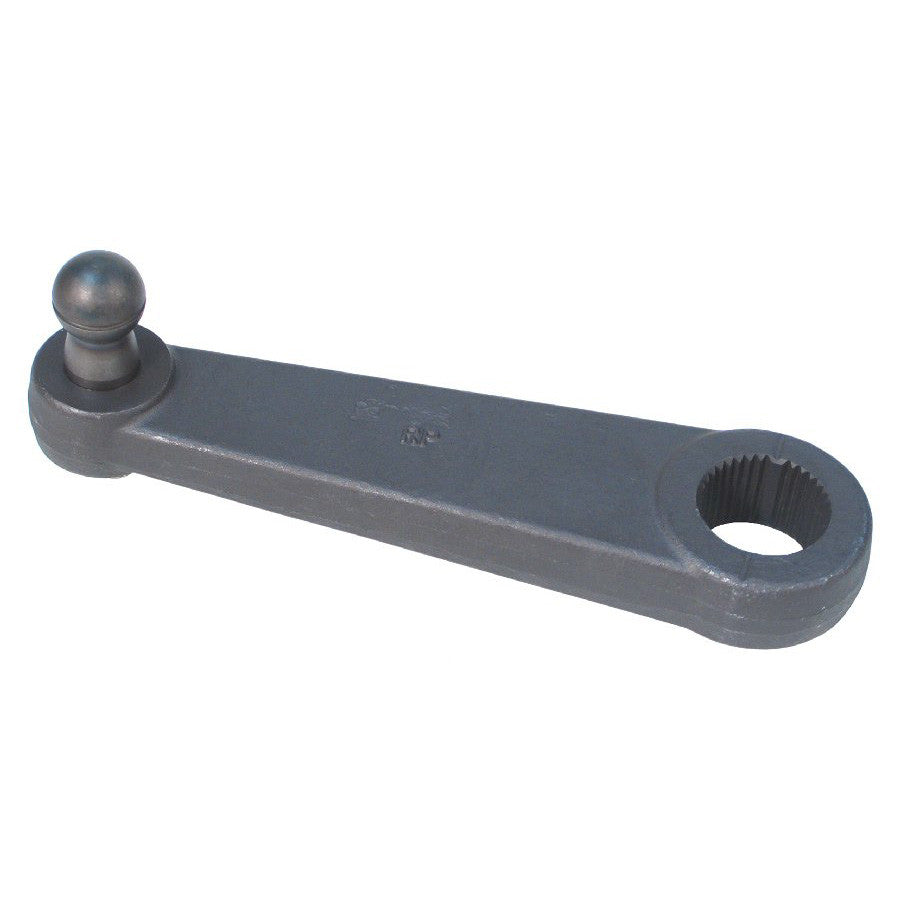

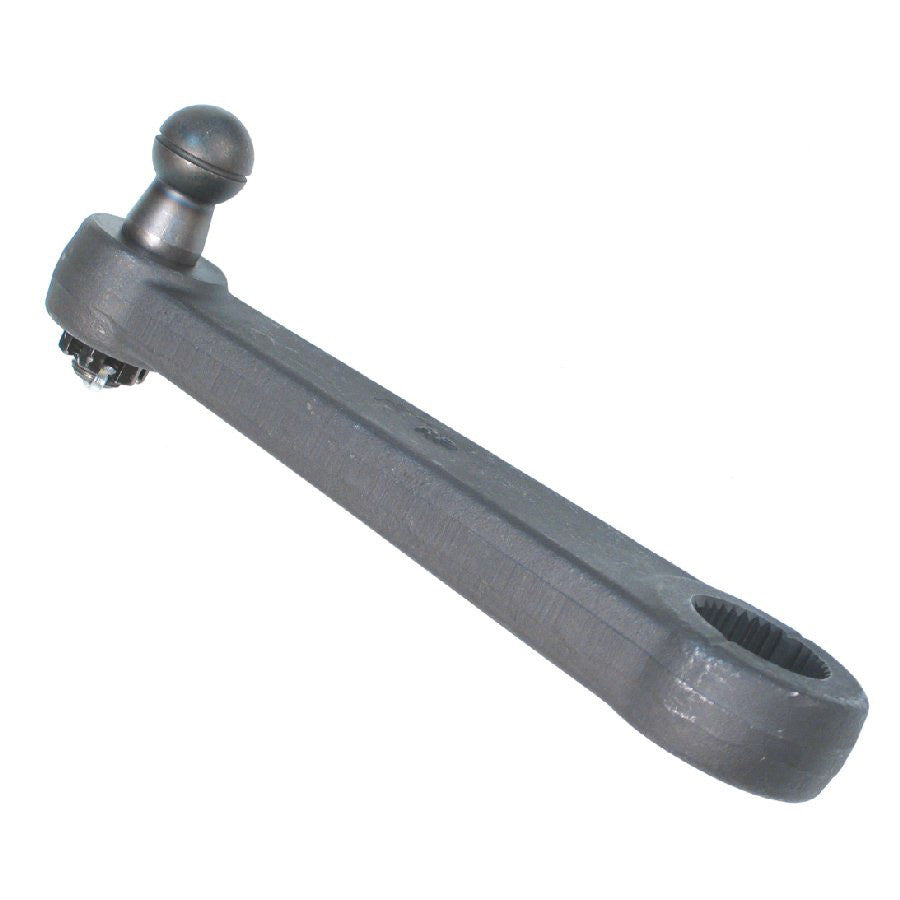

Rare Parts Pitman Arm
#20289 or RP20289
1959-1960 Cadillac Deville, Eldorado, Fleetwood 75, Series 62 & Comercial Chassis's

Features:
33% Increse in cross section at the Ball end over OEM

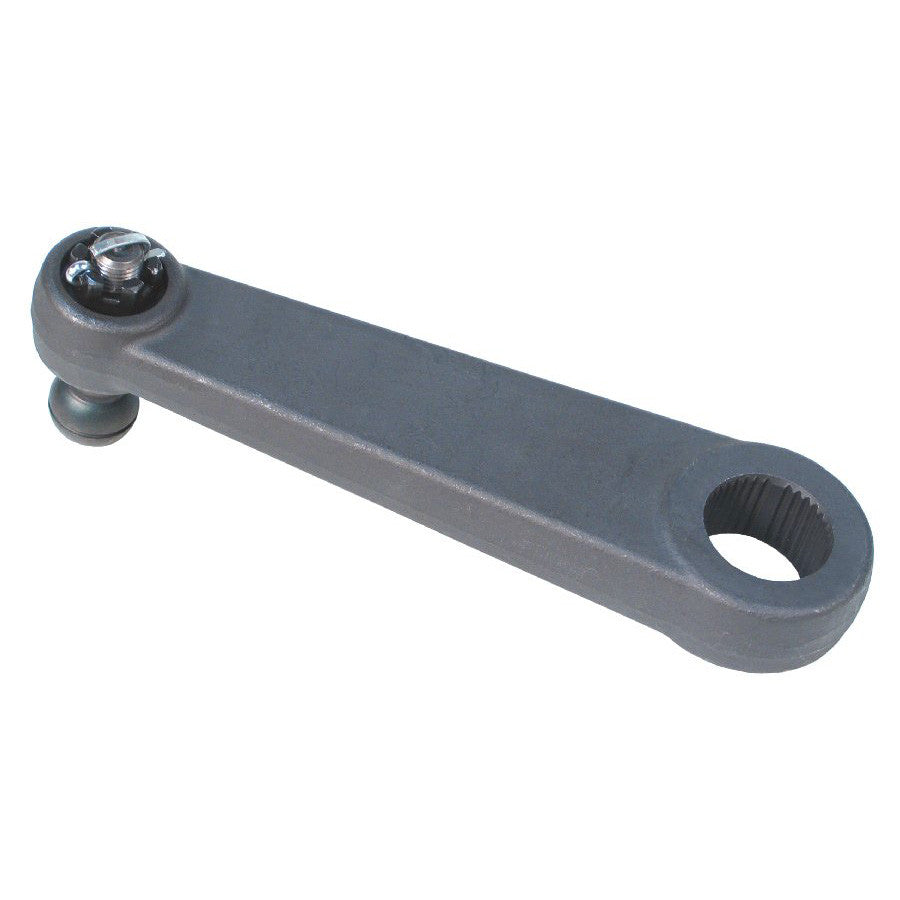

The Ball End is replaceable so if it ever wears out there is no need to replace the entire arm.

Heavy Duty design eliminates the worry associated with the GM recall on the failure prone OEM pitman arms. replace it with a Rare Parts Diamond Series a Pitman arm and never need to worry again. A very good article regarding this recall is available just below in an attachment

Includes Rare Parts Warranty

Specifications:
Stud Dia. Small End Of Taper    Ball Dia. 0.872
Sector Shaft Dia.    1.250
Sector Shaft Spline Large Inner Dia.    1.157
Length Center to Center    6.375
Key Way (Male or Female)    Male
Off Set    Straight
# of Splines    32
Greaseable    No
Hardware Content Included    No
Arm Type    Straight
Arm Fixture    Ball
Package Contents    1 Pitman Arm

Fits:
1959; Cadillac; Series 62
1960; Cadillac; Series 62
1959; Cadillac; Commercial Chassis
1959; Cadillac; Series 75 Fleetwood
1960; Cadillac; Commercial Chassis
1960; Cadillac; Series 75 Fleetwood
1959; Cadillac; DeVille
1960; Cadillac; DeVille
1959; Cadillac; Eldorado
1960; Cadillac; Eldorado
1959; Cadillac; Series 60 Fleetwood
1960; Cadillac; Series 60 Fleetwood
