Rare Parts FAB Series Tie Rod Lock Out Washer 65966

Rare Parts FAB Series Tie Rod Lock Out Washer 65966

SKU:RPI-65966

Regular price $23.99
Regular price Sale price $23.99
Sale Sold out
Shipping calculated at checkout.

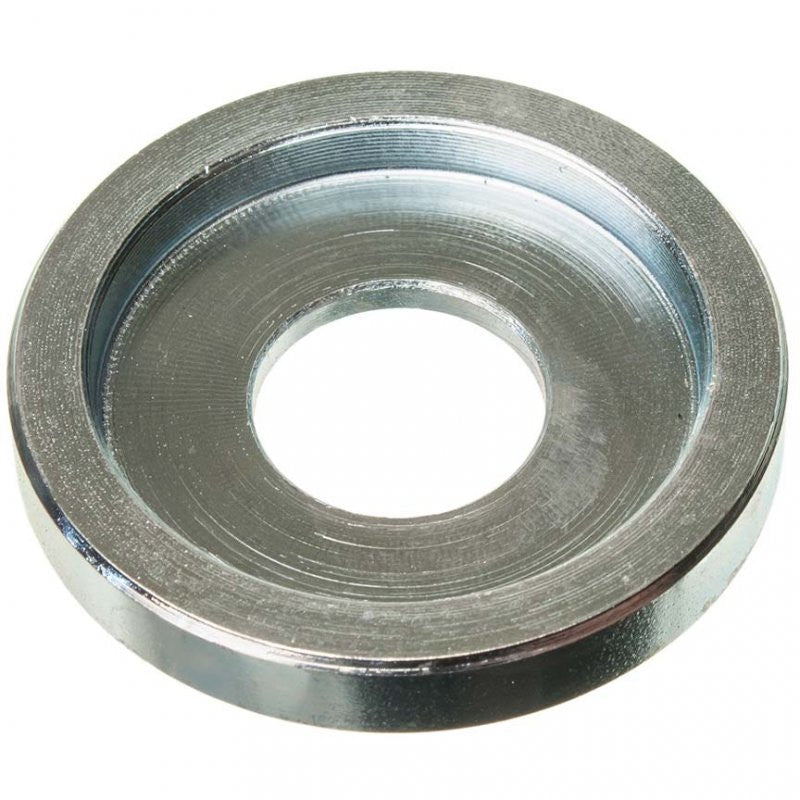

New Rare Parts FAB Series Tie Rod Lock Out Washer
Rare Parts #65966 or RP65966

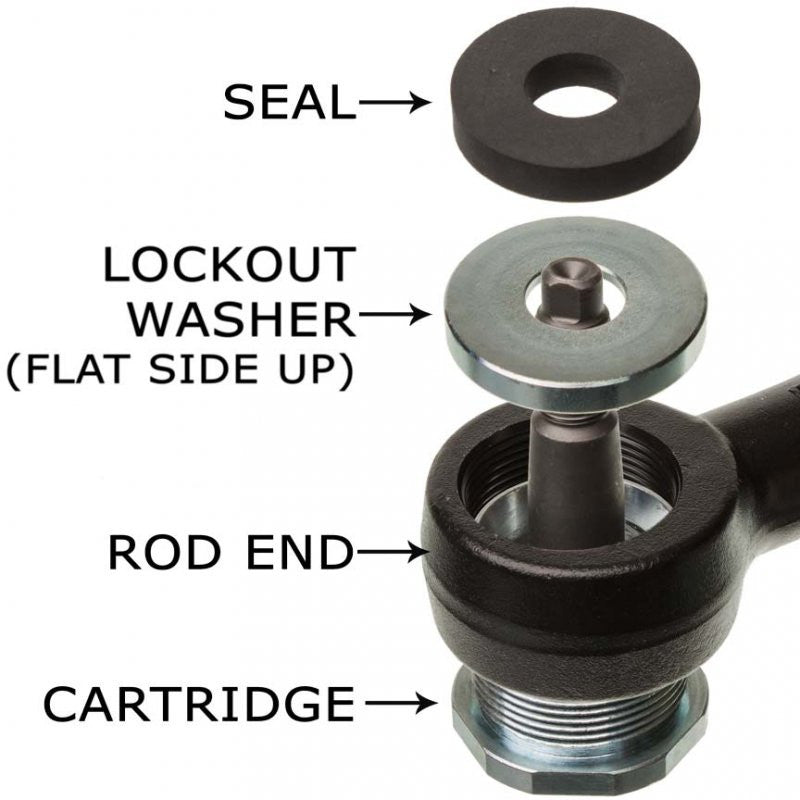

Prevents The Tie Rod Assembly From Twisting Down Not For Use On Drag Links, Tie Rods Only This style of boot is used in applications where the rod end will not be articulating at extreme angles and it is preferrable to stabilize the rod end upright. This boot prevents the steering link from rotating on the rod ends and prevent it from laying over frontwards or backwards, while still sealing grease into the rod end. Must be used with part number 65369 Seal

Build Your Own Steering 1. Pick the Rod Ends to match your knuckle configuration. 2. Select Your Stud Cartridges. 3. Cut your own tube to size, Weld in Threaded Inserts and assemble your new custom steering system.



 It all started with having to carry extra parts just in case something broke on the trail.

The Rare Parts Fab Series was designed to offer a few different things:

    The cartridges are easy to replace on the trail if a cartridge wears out.

    Depending on the steering system you build, one cartridge can replace all four points. You don’t have to carry 4 tie rod ends to be prepared.

    Unlike a tie rod end, if you unscrew one on the trail, you’ll have to reset toe on the trail. What a pain! The Rare Parts cartridge design can simply be unscrewed without effecting the center to center of the tie rod assembly and/or the drag link.

    Like most wheelers, many start small and soon get bit by the bug. Every time you get back from the trail you add something new to the list, right? This cartridge system will easily convert to a high steer configuration by simply unscrewing the cartridge from one direction and threading it in from the opposite. This is especially true for those who run JK forgings that can’t be flipped or the famous ES2233L with the tapered hole for the drag link that needs to come out towards the front of the vehicle. No need to flip the forging, just unscrew the cartridge and thread it in from the opposite direction.
