Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Tie Rod Assembly Kit W/Tube 29429

New Rare Parts FAB Series Tie Rod Assembly Kit With Tube
Rare Parts #29429 or RP29429
Fits 2007-2018 Jeep JK With Dana 30 or 44

The Last Tie Rod Assembly you will ever need to buy. Heavy Duty Modular design allows you to easily replace broken parts on the trail. If you decide to upgade front axles or upgrade to a high steer system the FAB Series Drag Link assembly will convert with minimal effort. Also Check out the Matching HD Drag Link Assembly Kit #29428. We also offer both kits together as a set. See part number 29428-9.

Another option available is the same kits without the tube and with threaded inserts instead. This allows you to use whatever material you choose to make the tubes

Note: Will not fit 16" OE wheels. 17" wheels may need additional spacing.

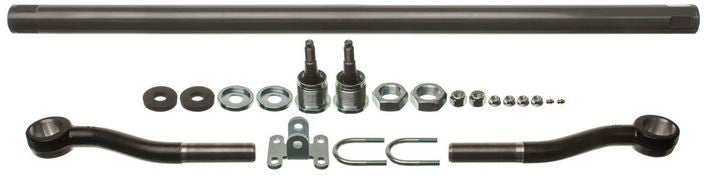

Tie Rod Assembly Kit Includes: One Offset LH Thread and One Offset RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, 1.75" OD 1026 DOM sleeve cut to the proper length, with machined threads and milled wrench flats - with a charcoal gray powder coat., Two Tie Rod Lock Washers (Prevent Tie Rod Assembly From Twisting Down) and Two Seals, Stabilizer Bracket and Hardware.

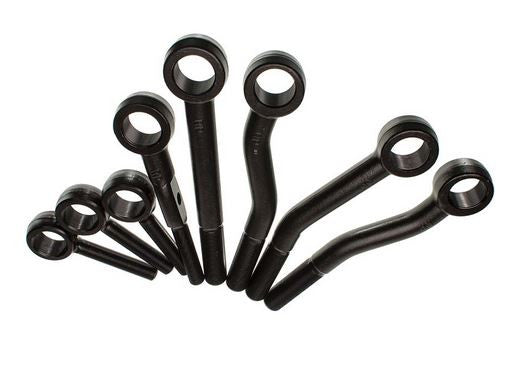

Tie Rod Forging Specs:
Offset Tie Rod End Thread: 1 1/4"-12 Threads
Thread Direction: One Left Hand Thread (Screws on Counter Clock-Wise) One Right Hand Thread (Screws on Clock-Wise)
Thread Length: 3 1/2"
Rod End Length: 12.250" Center of Hole to End
Offset Notes: Has a 1 1/2" offset Z-bend and is 2 7/8" from center of cartridge threads to the first bend, 3 5/8" from center of bend to center of bend, and 5 3/4" from second bend to the end of the threads.

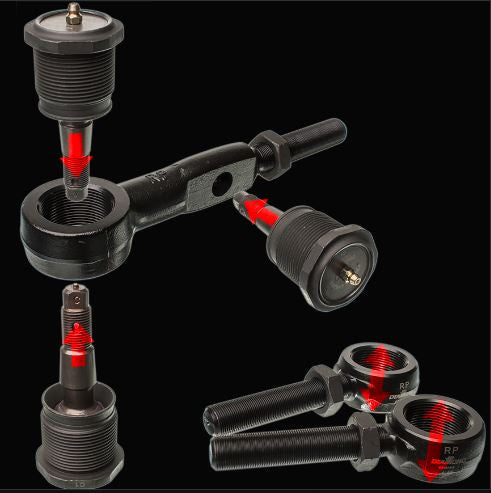

Cartridge Specs:
Taper Size: Small End of Taper .657"
Taper angle: 1.5" Per Foot
Includes: Dust Boot, Lock Nut, Grease Fitting

Threaded Insert Specs:
Wrench Flats: 1 3/4"
Tubing Size: Fits 1.5" ID Tubing
Tubing Specs: Finish: Charcoal Grey powdercoat
Threads: 1 1/4"-12 Machined
Material: 1026 DOM

Cross Reference To Currie Currectlync #JK-9703TR

Specifications:
Tie Rod Assembly Length    Adjustable
Tie Rod Thread    1 1/4-12
Stud Thread    9/16-18
Small Dia. Taper 1    0.658
Large Dia. Taper 1    0.736
Stud Length    0.661
Tie Rod End Gender    Male
Tie Rod Sleeve Length    38.937
Tie Rod Sleeve Inside Dia.    1 1/4-12
Adjustable Y/N    Yes
Grease Fitting Included    Yes
Bushings Included    No
Package Content    1 Sleeve, 2 Rod Ends, 2 Cartridges, 2 Dust Boots, 2 Lockout Caps, 2 Lock Nuts, 2 Grease Fittings, 2 Belleville Washers, 2 Jam Nuts, 1 Damper Bracket, 1 Damper Bolt, 1 Lock Nut, 2 U Bolts, 4 Nuts

Fits:
2007    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2008    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2009    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2010    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2011    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2012    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2013    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2014    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2015    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2016    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
2017    Jeep    Wrangler        FAB Series JK Tie Rod Assembly; W/ Adjusting Sleeve; Replaceable Cartridge System
