Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Tie Rod Assembly Kit 29419

New Rare Parts FAB Series Tie Rod Assembly Kit
Rare Parts #29419 or RP29419
Fits 2007-2018 Jeep JK With Dana 30 or 44

The Last Tie Rod Assembly you will ever need to buy. Heavy Duty Modular design allows you to easily replace broken parts on the trail. If you decide to upgrade front axles or upgrade to a high steer system the FAB Series Drag Link assembly will convert with minimal effort. Also Check out the Matching HD Drag Link Assembly Kit #29418. We also offer both kits together as a set at a savings. See part number 29418-9.

Another option we offer is the same kits with the correct length tube included, see part number 29428. 29429 and 29428-9

Note: Will not fit 16" OE wheels. 17" wheels may need additional spacing.

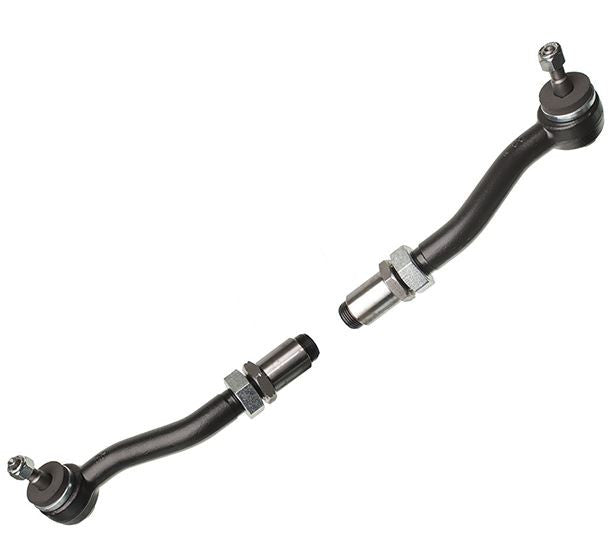

Tie Rod Assembly Kit Includes: One Offset LH Thread and One Offset RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, One LH Thread and One RH Thread Threaded Inserts, Two Tie Rod Lock Washers (Prevent Tie Rod Assembly From Twisting Down) and Two Seals. Tubing is NOT included. WELDING IS REQUIRED. BUYER MUST SUPPLY 1.5" ID DOM TUBING AND WELD IN THE SUPPLIED THREADED INSERTS

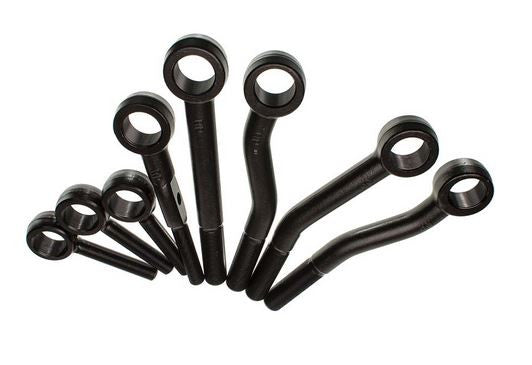

Tie Rod Forging Specs:
Offset Tie Rod End Thread: 1 1/4"-12 Threads
Thread Direction: One Left Hand Thread (Screws on Counter Clock-Wise) One Right Hand Thread (Screws on Clock-Wise)
Thread Length: 3 1/2"
Rod End Length: 12.250" Center of Hole to End
Offset Notes: Has a 1 1/2" offset Z-bend and is 2 7/8" from center of cartridge threads to the first bend, 3 5/8" from center of bend to center of bend, and 5 3/4" from second bend to the end of the threads.

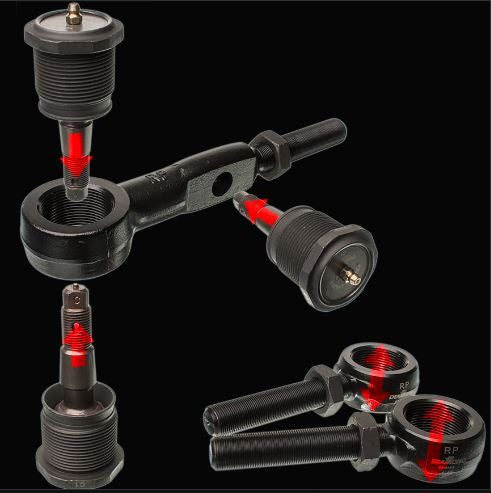

Cartridge Specs:
Taper Size: Small End of Taper .657"
Taper angle: 1.5" Per Foot
Includes: Dust Boot, Lock Nut, Grease Fitting

Threaded Insert Specs:
Wrench Flats: 1 3/4"
Tubing Size: Fits 1.5" ID Tubing
