Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Drag Link & Tie Rod Assembly Kits W/Tubes 29428-9

New Rare Parts FAB Series Drag Link And Tie Rod Assembly Kits
Rare Parts #29428 or RP29428 And 29429 or RP29429
Fits 2007-2018 Jeep JK With Dana 30 or 44

The Last Drag Link and Tie Rod you will ever need to buy. Heavy Duty Modular design allows you to easily replace broken parts on the trail. If you decide to upgade front axles or upgrade to a high steer system the FAB Series Drag Link assembly will convert with minimal effort.

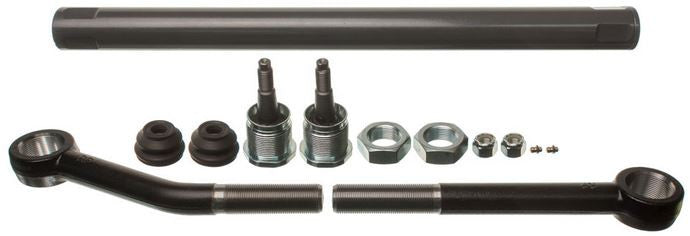

Drag Link Kit Includes:
One Straight LH Thread and One Bent RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, 1.75" OD 1026 DOM sleeves cut to the proper length, with machined threads and milled wrench flats - with a charcoal gray powder coat.


Tie Rod Forging Specs
 Straight Rod End
  Thread: 1 1/4"-12 Threads
  Thread Direction: Left Hand Thread (Screws on Counter Clock-Wise)
  Thread Length: 3 1/2"
  Rod End Length: 12.250" Center of Hole to End
 Bent Rod Forging Specs
  Thread: 1 1/4"-12 Threads
  Thread Direction: Right Hand Thread (Screws on Clock-Wise)
  Thread Length: 3 1/2"
  Rod End Length: 11.909" Center of Hole to End
  Bend Notes: Has a 27º bend, Bend is 7" from center of cartridge threads to center of the bend, and 5 1/8" from center of the bend
              to the end of the threads.

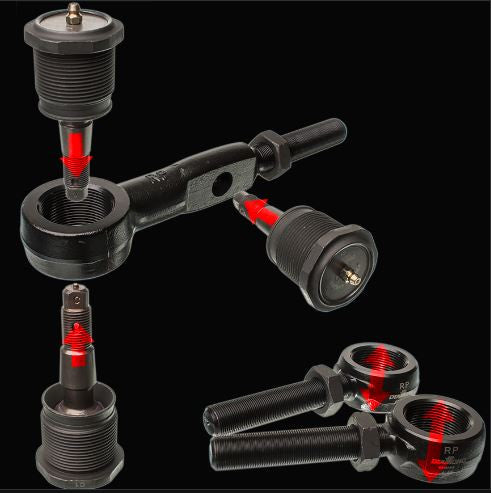

Cartridge Specs:
 Taper Size: Small End of Taper .657"
 Taper angle: 1.5" Per Foot
 Includes: Dust Boot, Lock Nut, Grease Fitting

Tube Specs:
Finish: Charcoal Grey Powdercoat
Threads: 1 1/4"-12 Machined
Material: 1026 DOM

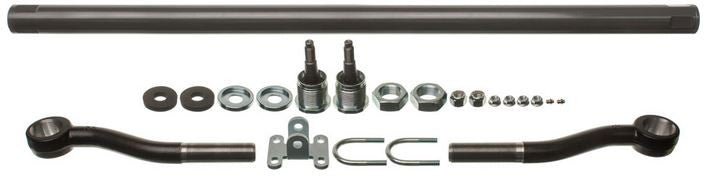

Tie Rod Assembly Kit Includes:
One Offset LH Thread and One Offset RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, 1.75" OD 1026 DOM sleeves cut to the proper length, with machined threads and milled wrench flats - with a charcoal gray powder coat, Two Tie Rod Lock Washers (Prevent Tie Rod Assembly From Twisting Down) and Two Seals, Stabilizer Bracket and Hardware


Tie Rod Forging Specs
 Offset Tie Rod End
  Thread: 1 1/4"-12 Threads
  Thread Direction: One Left Hand Thread (Screws on Counter Clock-Wise)
                    One Right Hand Thread (Screws on Clock-Wise)
  Thread Length: 3 1/2"
  Rod End Length: 12.250" Center of Hole to End
  Offset Notes: Has a 1 1/2" offset Z-bend and is 2 7/8" from center of cartridge threads to the first bend, 3 5/8" from center
                of bend to center of bend, and 5 3/4" from second bend to the end of the threads.

Cartridge Specs:
 Taper Size: Small End of Taper .657"
 Taper angle: 1.5" Per Foot
 Includes: Dust Boot, Lock Nut, Grease Fitting


Tube Specs:
Finish: Charcoal Grey Powdercoat
Threads: 1 1/4"-12 Machined
Material: 1026 DOM

Cross Reference To Currie Currectlync #JK-9703

Specifications:
29428:
Tie Rod Assembly Length    Adjustable
Tie Rod Thread    1 1/4-12
Stud Thread    9/16-18
Small Dia. Taper 1    0.658
Large Dia. Taper 1    0.736
Stud Length    0.661
Tie Rod End Gender    Male
Tie Rod Sleeve Length    22.375
Tie Rod Sleeve Inside Dia.    1 1/4-12
Adjustable Y/N    Yes
Grease Fitting Included    Yes
Bushings Included    No
Package Content    1 Sleeve, 2 Rod Ends, 2 Cartridges, 2 Dust Boots, 2 Lock Nuts, 2 Grease Fittings, 2 Belleville Washers, 2 Jam Nuts

29429:
Tie Rod Assembly Length    Adjustable
Tie Rod Thread    1 1/4-12
Stud Thread    9/16-18
Small Dia. Taper 1    0.658
Large Dia. Taper 1    0.736
Stud Length    0.661
Tie Rod End Gender    Male
Tie Rod Sleeve Length    38.937
Tie Rod Sleeve Inside Dia.    1 1/4-12
Adjustable Y/N    Yes
Grease Fitting Included    Yes
Bushings Included    No
Package Content    1 Sleeve, 2 Rod Ends, 2 Cartridges, 2 Dust Boots, 2 Lockout Caps, 2 Lock Nuts, 2 Grease Fittings, 2 Belleville Washers, 2 Jam Nuts, 1 Damper Bracket, 1 Damper Bolt, 1 Lock Nut, 2 U Bolts, 4 Nuts

Fits:
2007    Jeep    Wrangler
2008    Jeep    Wrangler
2009    Jeep    Wrangler
2010    Jeep    Wrangler
2011    Jeep    Wrangler
2012    Jeep    Wrangler
2013    Jeep    Wrangler
2014    Jeep    Wrangler
2015    Jeep    Wrangler
2016    Jeep    Wrangler
2017    Jeep    Wrangler
2018    Jeep    Wrangler  JK
