Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Drag Link Assembly W/Tube 29428

Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Drag Link Assembly W/Tube 29428

SKU:RPIS-29428

Regular price $433.04
Regular price Sale price $433.04
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

New Rare Parts FAB Series Drag Link Assembly
Rare Parts #29428 or RP29428
Fits 2007-2018 Jeep JK With Dana 30 or 44

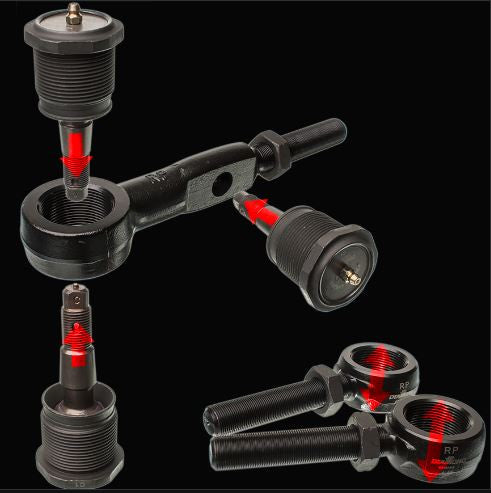

The Last Drag Link you will ever need to buy. Heavy Duty Modular design allows you to easily replace broken parts on the trail. If you decide to upgade front axles or upgrade to a high steer system the FAB Series Drag Link assembly will convert with minimal effort. Also Check out the Matching HD Tie Rod Assembly Kit #29429. We also offer both kits together as a set. See part number 29428-9.

Another option we have available is both kits without the tube and with threaded weld in inserts instead. This allows you to use a material an size of your choice. see part number 29418, 29419 and 29418-9

Drag Link Kit Includes:

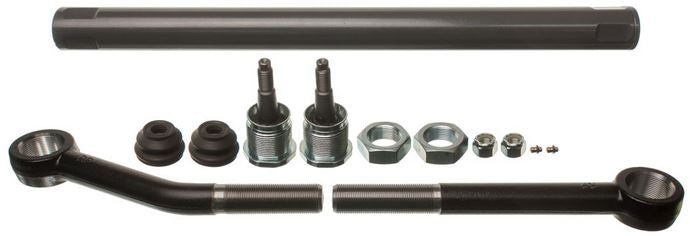

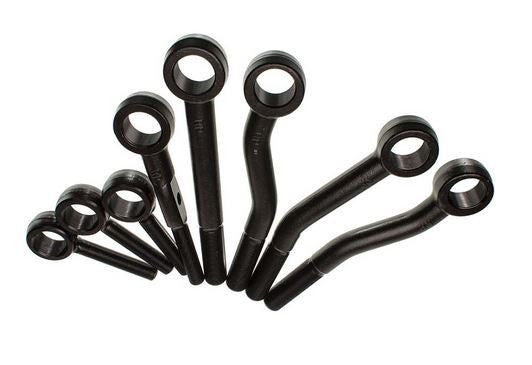

One Straight LH Thread and One Bent RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, 1.75" OD 1026 DOM sleeve cut to the proper length, with machined threads and milled wrench flats - with a charcoal gray powder coat.

Tie Rod Forging Specs:
Straight Rod End Thread: 1 1/4"-12 Threads
Thread Direction: Left Hand Thread (Screws on Counter Clock-Wise)
Thread Length: 3 1/2" Rod End
Length: 12.250" Center of Hole to End

Bent Rod Forging Specs Thread: 1 1/4"-12 Threads
Thread Direction: Right Hand Thread (Screws on Clock-Wise)
Thread Length: 3 1/2"
Rod End Length: 11.909" Center of Hole to End
Bend Notes: Has a 27º bend, Bend is 7" from center of cartridge threads to center of the bend, and 5 1/8" from center of the bend to the end of the threads.

Cartridge Specs:
Taper Size: Small End of Taper .657"
Taper angle: 1.5" Per Foot
Includes: Dust Boot, Lock Nut, Grease Fitting

Tube Specs: Finish: Charcoal Grey Powdercoat
Threads: 1 1/4"-12 Machined
Material: 1026 DOM



Cross Reference To Currie Currectlync #JK-9703DL



Specifications:
Tie Rod Assembly Length    Adjustable
Tie Rod Thread    1 1/4-12
Stud Thread    9/16-18
Small Dia. Taper 1    0.658
Large Dia. Taper 1    0.736
Stud Length    0.661
Tie Rod End Gender    Male
Tie Rod Sleeve Length    22.375
Tie Rod Sleeve Inside Dia.    1 1/4-12
Adjustable Y/N    Yes
Grease Fitting Included    Yes
Bushings Included    No
Package Content    1 Sleeve, 2 Rod Ends, 2 Cartridges, 2 Dust Boots, 2 Lock Nuts, 2 Grease Fittings, 2 Belleville Washers, 2 Jam Nuts
