Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Drag Link Assembly 29418
Rare Parts FAB Series Heavy Duty 2007-2018 Jeep JK Drag Link Assembly 29418
SKU:RPI-29418
Out of stock
New Rare Parts FAB Series Drag Link Assembly
Rare Parts #29418 or RP29418
Fits 2007-2018 Jeep JK With Dana 30 or 44
The Last Drag Link you will ever need to buy. Heavy Duty Modular design allows you to easily replace broken parts on the trail. If you decide to upgade front axles or upgrade to a high steer system the FAB Series Drag Link assembly will convert with minimal effort. Also Check out the Matching HD Tie Rod Assembly Kit #29419. We also offer both kits together as a set at a savings. See part number 29418-9.
NOTE: CLEARANCE WARNING FOR HIGH STEER POSITION. Using the drag link in the high steer position requires 17" or larger aftermarket wheels with 4.75" backspacing or less to clear the drag link forging at the wheel. The vehicle must have a minimum of a 3" suspension lift so the drag link sleeve will not rub the frame.
Another option we offer is the same kits with the correct length tube included see part number 29428, 29429 and 29428-9

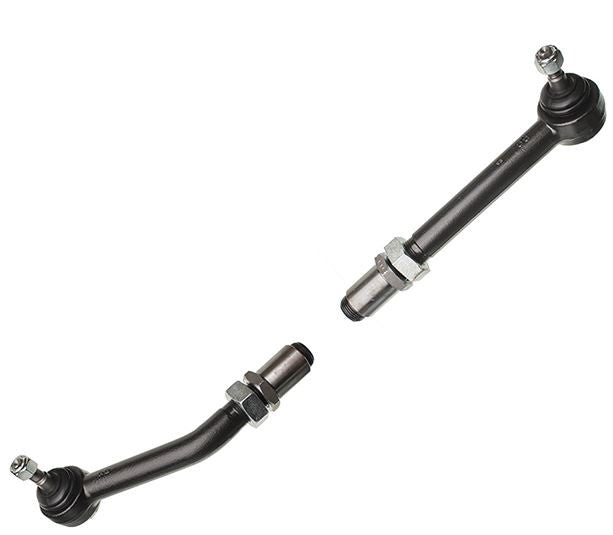

Drag Link Kit Includes: One Straight LH Thread and One Bent RH Thread Tie Rod Forgings, Two Replaceable Cartridges, One LH Thread and One RH Thread Jam Nuts, One LH Thread and One RH Thread Threaded Inserts. Tubing is NOT included. WELDING IS REQUIRED. BUYER MUST SUPPLY 1.5" ID DOM TUBING AND WELD IN THE SUPPLIED THREADED INSERTS

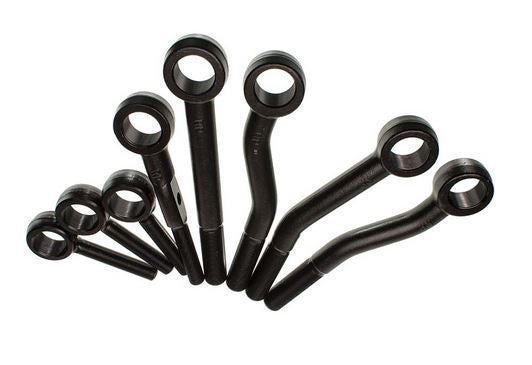

Tie Rod Forging Specs Straight Rod End Thread: 1 1/4"-12
Threads Thread Direction: Left Hand Thread (Screws on Counter Clock-Wise)
Thread Length: 3 1/2"
Rod End Length: 12.250" Center of Hole to End
Bent Rod Forging Specs
Thread: 1 1/4"-12 Threads
Thread Direction: Right Hand Thread (Screws on Clock-Wise)
Thread Length: 3 1/2"
Rod End Length: 11.909" Center of Hole to End
Bend Notes: Has a 27º bend, Bend is 7" from center of cartridge threads to center of the bend, and 5 1/8" from center of the bend to the end of the threads.

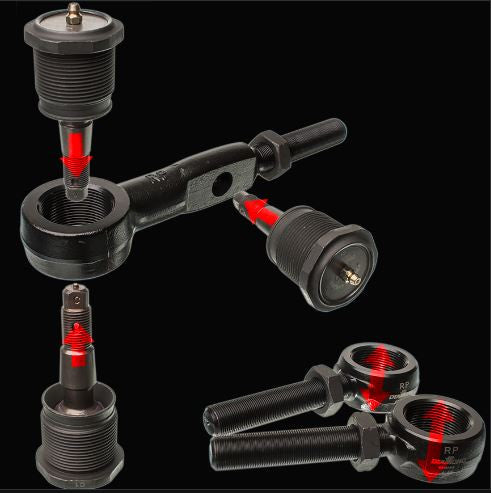

Cartridge Specs:
Taper Size: Small End of Taper .657"
Taper angle: 1.5" Per Foot
Includes: Dust Boot, Lock Nut, Grease Fitting
Threaded Insert Specs:
Wrench Flats: 1 3/4"
Tubing Size: Fits 1.5" ID Tubing
