Rare Parts FAB Series 1974-1991 Jeep SJ HD Pitman Arm Wagoneer J10 J20 Cherokee 28952

Rare Parts FAB Series 1974-1991 Jeep SJ HD Pitman Arm Wagoneer J10 J20 Cherokee 28952

SKU:RPIS-28952

Regular price $397.99
Regular price Sale price $397.99
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

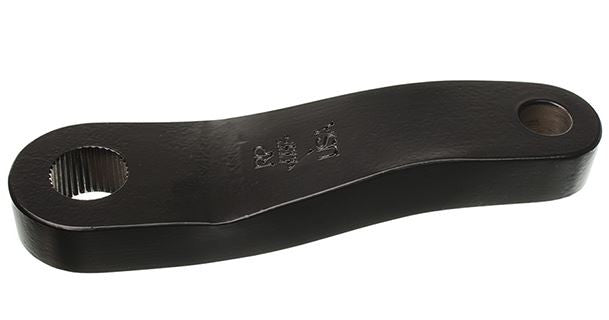

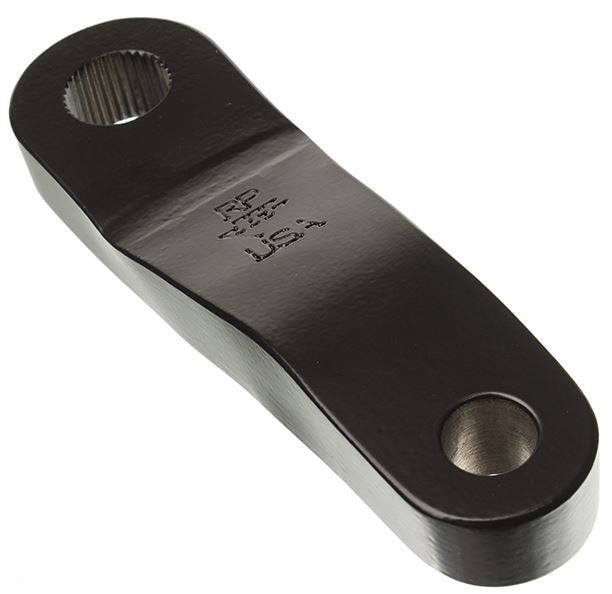

New Rare Parts FAB Series Heavy Duty Pitman Arm
Rare Parts #28952 or RP28952

Specifications:
Sector Shaft Diameter: 1.250"
Splines: 36
Length: 6.690" Center to Center

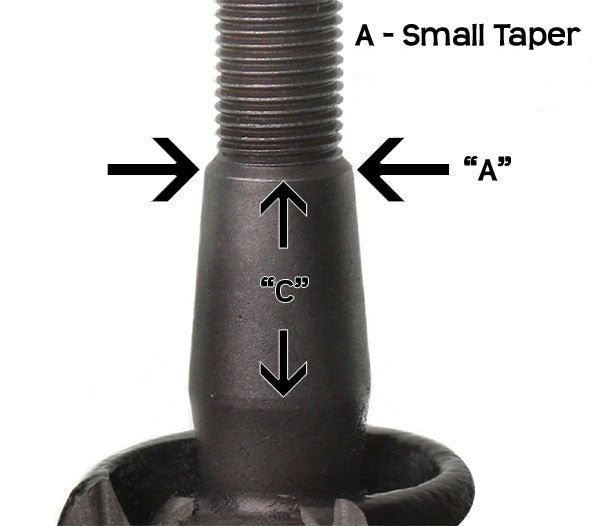

Taper Small Diameter: .675" (See Picture for Measurement Diagram)
Taper: 1.5" Per Foot

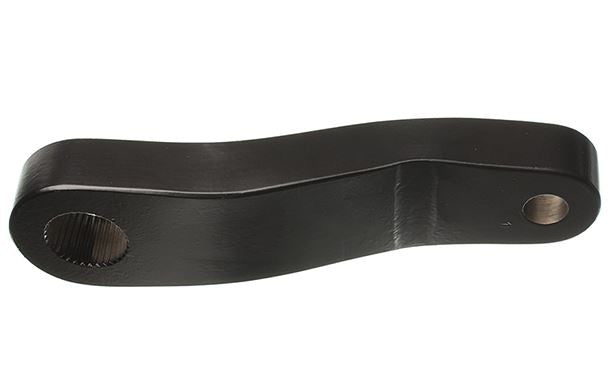

Features: * This is a full 36 spline. With full splines you have the added benefit of 10degree adjustment per tooth. * Cut from a single 1.00" thick piece of heat treated 4140 steel. Made in the USA. * Replaces OEM part# 5352278 and Crown Part Number J5352278 * The bend in the arm is .900 from the small surface of the sector shaft to the large taper surface of the drag link end. Fits: 1978-1983 Jeep Wagoneer 1974-1983 Jeep Cherokee 1974-1988 Jeep J10 and J20 1984-1991 Jeep Grand Wagoneer Also Available Part number 20620. Identical to this Pitman Arm but will accept .715" Small Taper Diamter Studs(1-Ton GM Pitman Size)
