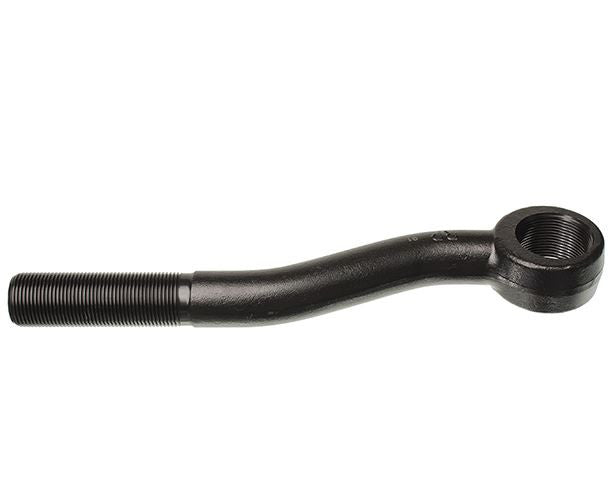

Rare Parts FAB Series 1 1/4"-12 Offset Rod End W/ RH Thread 65790

New Rare Parts FAB Series Rod End

Rare Parts #65790 or RP65790

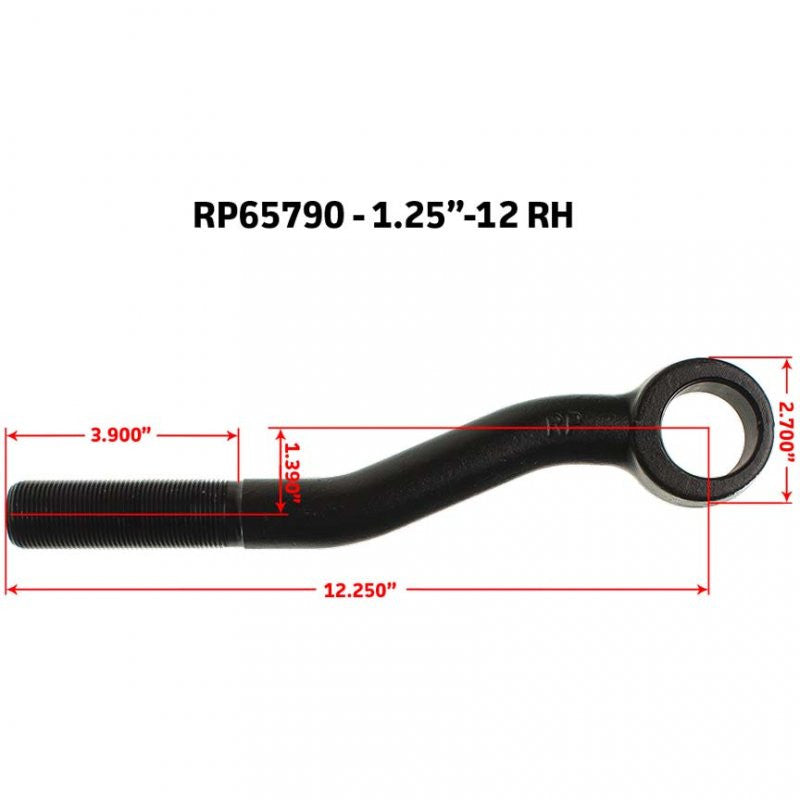

Length: 12.250" Center Of Hole To End
Thread Size: 1 1/4"-12 TPI
Thread Direction: Right Hand(Threads On Clock-Wise)
Thread Length: 3 1/2"
Offset: 1 1/2"
Offset Notes: 2 7/8" from center of cartridge threads to the first bend, 3 5/8" from center of bend to center of bend, and 5 3/4" from second bend to the end of the threads.

Requires Jam Nut 65913 (Not included)

Replaces Currie part number 9703TRFR
