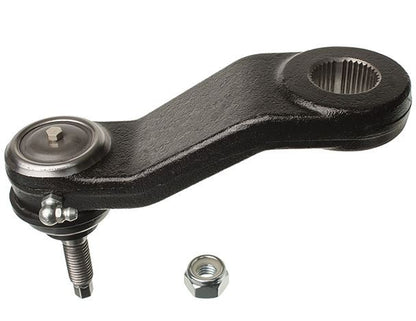

Rare Parts Extreme Duty Pitman Arm 1999-2013 Chevy GMC Cadillac H2 20609

New Rare Parts Extreme Duty Pitman Arm
Rare Parts #20609 or RP20609
1999-2013 Chevy, GMC, Cadillac and Hummer H2 (See Extended Description Below For Full Vehicle Application/Fitment Information)
Also the Downloadable PDF Below Will Show All of The Correct Extreme Duty Parts and Their Available Applications

3 Master Spline Version

Features:

Cold headed 30MM full ball stud - eliminates binding between pitman and idler arm
Induction through hardened and annealed SAE 4140 stud provides extreme wear resistance
Heat treated steel race
Powder metal upper bearing
SAE 1541 forged and heat treated housing with increased size for maximum strength
Relocated grease fitting for easy access
Made in the USA

NOTE: Please check the pitman arm on your vehicle. This part fits Gear Boxes With 3 Master Splines Only. If your Vehicle Has 4 Master Splines See Part Number 20610

Pitman Arms Include: Nut & Zerk Fitting
Pivot End is grease-able

See Part Numbers:
21037 For Extreme Duty Idler Arm Bracket
20608 For Extreme Duty Idler Arm
28723, 28559 and 29092 For Extreme Duty Tie Rod Assemblies




FITS:
2002 Cadillac Escalade
2003 Cadillac Escalade
2004 Cadillac Escalade
2005 Cadillac Escalade
2006 Cadillac Escalade
2002 Cadillac Escalade ESV
2003 Cadillac Escalade ESV
2004 Cadillac Escalade ESV
2005 Cadillac Escalade ESV
2006 Cadillac Escalade ESV
2002 Cadillac Escalade EXT
2003 Cadillac Escalade EXT
2004 Cadillac Escalade EXT
2005 Cadillac Escalade EXT
2006 Cadillac Escalade EXT
2002 Chevrolet Avalanche 2500
2003 Chevrolet Avalanche 2500
2004 Chevrolet Avalanche 2500
2005 Chevrolet Avalanche 2500
2006 Chevrolet Avalanche 2500
2003 Chevrolet Express 2500
2004 Chevrolet Express 2500
2005 Chevrolet Express 2500
2006 Chevrolet Express 2500
2007 Chevrolet Express 2500
2008 Chevrolet Express 2500
2009 Chevrolet Express 2500
2010 Chevrolet Express 2500
2011 Chevrolet Express 2500
2012 Chevrolet Express 2500
2013 Chevrolet Express 2500
2003 Chevrolet Express 3500
2004 Chevrolet Express 3500
2005 Chevrolet Express 3500
2006 Chevrolet Express 3500
2007 Chevrolet Express 3500
2008 Chevrolet Express 3500
2009 Chevrolet Express 3500
2010 Chevrolet Express 3500
2011 Chevrolet Express 3500
2012 Chevrolet Express 3500
2013 Chevrolet Express 3500
2009 Chevrolet Express 4500
2010 Chevrolet Express 4500
2011 Chevrolet Express 4500
2007 Chevrolet Silverado 1500 RWD
2001 Chevrolet Silverado 1500 4WD
2002 Chevrolet Silverado 1500 4WD
2003 Chevrolet Silverado 1500 4WD
2004 Chevrolet Silverado 1500 4WD
2005 Chevrolet Silverado 1500 4WD
2006 Chevrolet Silverado 1500 4WD
2007 Chevrolet Silverado 1500 4WD
2003 Chevrolet Silverado 1500 AWD
2004 Chevrolet Silverado 1500 AWD
2005 Chevrolet Silverado 1500 AWD
2001 Chevrolet Silverado 1500 HD
2002 Chevrolet Silverado 1500 HD
2003 Chevrolet Silverado 1500 HD
2004 Chevrolet Silverado 1500 HD
2005 Chevrolet Silverado 1500 HD
2006 Chevrolet Silverado 1500 HD
2007 Chevrolet Silverado 1500 HD
1999 Chevrolet Silverado 2500
2000 Chevrolet Silverado 2500
2001 Chevrolet Silverado 2500
2002 Chevrolet Silverado 2500
2003 Chevrolet Silverado 2500
2004 Chevrolet Silverado 2500
2001 Chevrolet Silverado 2500 HD
2002 Chevrolet Silverado 2500 HD
2003 Chevrolet Silverado 2500 HD
2004 Chevrolet Silverado 2500 HD
2005 Chevrolet Silverado 2500 HD
2006 Chevrolet Silverado 2500 HD
2007 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 2500 HD
2009 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 2500 HD
2001 Chevrolet Silverado 3500
2002 Chevrolet Silverado 3500
2003 Chevrolet Silverado 3500
2004 Chevrolet Silverado 3500
2005 Chevrolet Silverado 3500
2006 Chevrolet Silverado 3500
2007 Chevrolet Silverado 3500
2007 Chevrolet Silverado 3500 HD
2008 Chevrolet Silverado 3500 HD
2009 Chevrolet Silverado 3500 HD
2010 Chevrolet Silverado 3500 HD
2001 Chevrolet Suburban 2500
2002 Chevrolet Suburban 2500
2003 Chevrolet Suburban 2500
2004 Chevrolet Suburban 2500
2005 Chevrolet Suburban 2500
2006 Chevrolet Suburban 2500
2007 Chevrolet Suburban 2500
2008 Chevrolet Suburban 2500
2009 Chevrolet Suburban 2500
2010 Chevrolet Suburban 2500
2011 Chevrolet Suburban 2500
2003 GMC Savana 2500
2004 GMC Savana 2500
2005 GMC Savana 2500
2006 GMC Savana 2500
2007 GMC Savana 2500
2008 GMC Savana 2500
2009 GMC Savana 2500
2010 GMC Savana 2500
2011 GMC Savana 2500
2012 GMC Savana 2500
2013 GMC Savana 2500
2003 GMC Savana 3500
2004 GMC Savana 3500
2005 GMC Savana 3500
2006 GMC Savana 3500
2007 GMC Savana 3500
2008 GMC Savana 3500
2009 GMC Savana 3500
2010 GMC Savana 3500
2011 GMC Savana 3500
2012 GMC Savana 3500
2013 GMC Savana 3500
2009 GMC Savana 4500
2010 GMC Savana 4500
2011 GMC Savana 4500
2002 GMC Sierra 1500 AWD
2003 GMC Sierra 1500 AWD
2004 GMC Sierra 1500 AWD
2005 GMC Sierra 1500 AWD
2006 GMC Sierra 1500 AWD
2007 GMC Sierra 1500 AWD
1999 GMC Sierra 1500 4WD
2000 GMC Sierra 1500 4WD
2001 GMC Sierra 1500 4WD
2002 GMC Sierra 1500 4WD
2003 GMC Sierra 1500 4WD
2004 GMC Sierra 1500 4WD
2005 GMC Sierra 1500 4WD
2006 GMC Sierra 1500 4WD
2007 GMC Sierra 1500 4WD
2001 GMC Sierra 1500 HD
2002 GMC Sierra 1500 HD
2003 GMC Sierra 1500 HD
2004 GMC Sierra 1500 HD
2005 GMC Sierra 1500 HD
2006 GMC Sierra 1500 HD
2007 GMC Sierra 1500 HD
1999 GMC Sierra 2500
2000 GMC Sierra 2500
2001 GMC Sierra 2500
2002 GMC Sierra 2500
2003 GMC Sierra 2500
2004 GMC Sierra 2500
2001 GMC Sierra 2500 HD
2002 GMC Sierra 2500 HD
2003 GMC Sierra 2500 HD
2004 GMC Sierra 2500 HD
2005 GMC Sierra 2500 HD
2006 GMC Sierra 2500 HD
2007 GMC Sierra 2500 HD
2008 GMC Sierra 2500 HD
2009 GMC Sierra 2500 HD
2010 GMC Sierra 2500 HD
2001 GMC Sierra 3500
2002 GMC Sierra 3500
2003 GMC Sierra 3500
2004 GMC Sierra 3500
2005 GMC Sierra 3500
2006 GMC Sierra 3500
2007 GMC Sierra 3500
2007 GMC Sierra 3500 HD
2008 GMC Sierra 3500 HD
2009 GMC Sierra 3500 HD
2010 GMC Sierra 3500 HD
2001 GMC Yukon XL 2500
2002 GMC Yukon XL 2500
2003 GMC Yukon XL 2500
2004 GMC Yukon XL 2500
2005 GMC Yukon XL 2500
2006 GMC Yukon XL 2500
2007 GMC Yukon XL 2500
2008 GMC Yukon XL 2500
2009 GMC Yukon XL 2500
2010 GMC Yukon XL 2500
2011 GMC Yukon XL 2500
2003 Hummer H2
2004 Hummer H2
2005 Hummer H2
2006 Hummer H2
2007 Hummer H2
2008 Hummer H2
2009 Hummer H2
