Rare Parts Extreme Duty Idler/Bracket/Pitman Arm/Tie Rods Combo 2001-2011 Chevy GMC Hummer H2 20608/9-37-59
Rare Parts Extreme Duty Idler/Bracket/Pitman Arm/Tie Rods Combo 2001-2011 Chevy GMC Hummer H2 20608/9-37-59
SKU:RPIS-20608/9-37-59
Low stock: 2 left

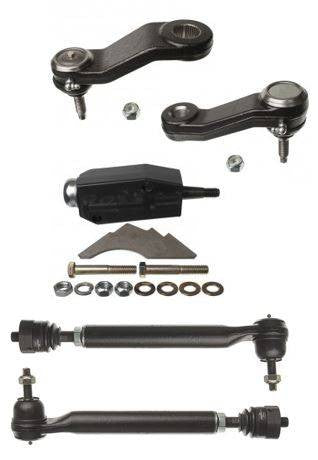

New Rare Parts Extreme Duty Idler Arm, Idler Arm Bracket And Pitman Arm Combination
Rare Parts
#20608 or RP20608
#21037 or RP21037
#20609 or RP20609 (Fits 3 Master Spline applications Only)
And #28559 or RP28559
Fits:
2001-2011 Chevy, GMC and Hummer H2 (See Extended Description Below For Full Vehicle Application/Fitment Information)
Also the Downloadable PDF Below Will Show All of The Correct Extreme Duty Parts and Their Available Applications
20608 Idler Arm Features:
Cold headed stud with reverse pin prevents center link roll
Induction through hardened and annealed SAE 4140 stud provides extreme wear resistance
Heat treated steel race
Powder metal support bearing
Forged SAE 1040 housing with increased size for maximum strength
Relocated grease fitting for easy access
Made in the USA
Idler Arms Include: Nut & Zerk Fitting
Pivot End is grease-able
21037 Idler Arm Bracket Features:
Dual tapered roller bearings
Sealed zero-maintenance design
Heat treated tapered stud
Lightweight aluminum housing
Direct bolt-on replacement without any modifications*
All mounting hardware included
Made in the USA
Kit includes weld-in gusset if you want extreme strength (See Picture For Image of Gusset Installed)
20609 Pitman Arm Features:
Cold headed 30MM full ball stud - eliminates binding between pitman and idler arm
Induction through hardened and annealed SAE 4140 stud provides extreme wear resistance
Heat treated steel race
Powder metal upper bearing
SAE 1541 forged and heat treated housing with increased size for maximum strength
Relocated grease fitting for easy access
Made in the USA
NOTE: Please check the pitman arm on your vehicle. This part fits Gear Boxes With 3 Master Splines Only. If your Vehicle Has 4 Master Splines See Part Number 20610 or 20608/10
Pitman Arms Include: Nut & Zerk Fitting
Pivot End is grease-able
28559 Tie Rod Assemblies Features
32mm Ball versus the OEM 25mm
37 degrees of stud swing versus 28 degrees OEM
1 1/2" forging versus 1/2" OEM
Full ball studs
Greaseable steel-on-steel internal design
Increased stud swing
Sealed boot.
Black Powder coated finish
Replaces ES3488 Inner & ES3609 Outer
FITS:
2002 Chevrolet Avalanche 2500
2003 Chevrolet Avalanche 2500
2004 Chevrolet Avalanche 2500
2005 Chevrolet Avalanche 2500
2006 Chevrolet Avalanche 2500
2001 Chevrolet Silverado 1500 HD
2002 Chevrolet Silverado 1500 HD
2003 Chevrolet Silverado 1500 HD
2004 Chevrolet Silverado 1500 HD
2005 Chevrolet Silverado 1500 HD
2006 Chevrolet Silverado 1500 HD
2007 Chevrolet Silverado 1500 HD
2001 Chevrolet Silverado 2500
2002 Chevrolet Silverado 2500
2003 Chevrolet Silverado 2500
2004 Chevrolet Silverado 2500
2001 Chevrolet Silverado 2500 HD
2002 Chevrolet Silverado 2500 HD
2003 Chevrolet Silverado 2500 HD
2004 Chevrolet Silverado 2500 HD
2005 Chevrolet Silverado 2500 HD
2006 Chevrolet Silverado 2500 HD
2007 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 2500 HD
2009 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 2500 HD
2001 Chevrolet Silverado 3500
2002 Chevrolet Silverado 3500
2003 Chevrolet Silverado 3500
2004 Chevrolet Silverado 3500
2005 Chevrolet Silverado 3500
2006 Chevrolet Silverado 3500
2007 Chevrolet Silverado 3500
2007 Chevrolet Silverado 3500 HD
2008 Chevrolet Silverado 3500 HD
2009 Chevrolet Silverado 3500 HD
2010 Chevrolet Silverado 3500 HD
2001 Chevrolet Suburban 2500
2002 Chevrolet Suburban 2500
2003 Chevrolet Suburban 2500
2004 Chevrolet Suburban 2500
2005 Chevrolet Suburban 2500
2006 Chevrolet Suburban 2500
2007 Chevrolet Suburban 2500
2008 Chevrolet Suburban 2500
2009 Chevrolet Suburban 2500
2010 Chevrolet Suburban 2500
2011 Chevrolet Suburban 2500
2001 GMC Sierra 1500 HD
2002 GMC Sierra 1500 HD
2003 GMC Sierra 1500 HD
2004 GMC Sierra 1500 HD
2005 GMC Sierra 1500 HD
2006 GMC Sierra 1500 HD
2007 GMC Sierra 1500 HD
2001 GMC Sierra 2500
2002 GMC Sierra 2500
2003 GMC Sierra 2500
2004 GMC Sierra 2500
2001 GMC Sierra 2500 HD
2002 GMC Sierra 2500 HD
2003 GMC Sierra 2500 HD
2004 GMC Sierra 2500 HD
2005 GMC Sierra 2500 HD
2006 GMC Sierra 2500 HD
2007 GMC Sierra 2500 HD
2008 GMC Sierra 2500 HD
2009 GMC Sierra 2500 HD
2010 GMC Sierra 2500 HD
2001 GMC Sierra 3500
2002 GMC Sierra 3500
2003 GMC Sierra 3500
2004 GMC Sierra 3500
2005 GMC Sierra 3500
2006 GMC Sierra 3500
2007 GMC Sierra 3500
2007 GMC Sierra 3500 HD
2008 GMC Sierra 3500 HD
2009 GMC Sierra 3500 HD
2010 GMC Sierra 3500 HD
2001 GMC Yukon XL 2500
2002 GMC Yukon XL 2500
2003 GMC Yukon XL 2500
2004 GMC Yukon XL 2500
2005 GMC Yukon XL 2500
2006 GMC Yukon XL 2500
2007 GMC Yukon XL 2500
2008 GMC Yukon XL 2500
2009 GMC Yukon XL 2500
2010 GMC Yukon XL 2500
2003 Hummer H2
2004 Hummer H2
2005 Hummer H2
2006 Hummer H2
2007 Hummer H2
2008 Hummer H2
2009 Hummer H2
