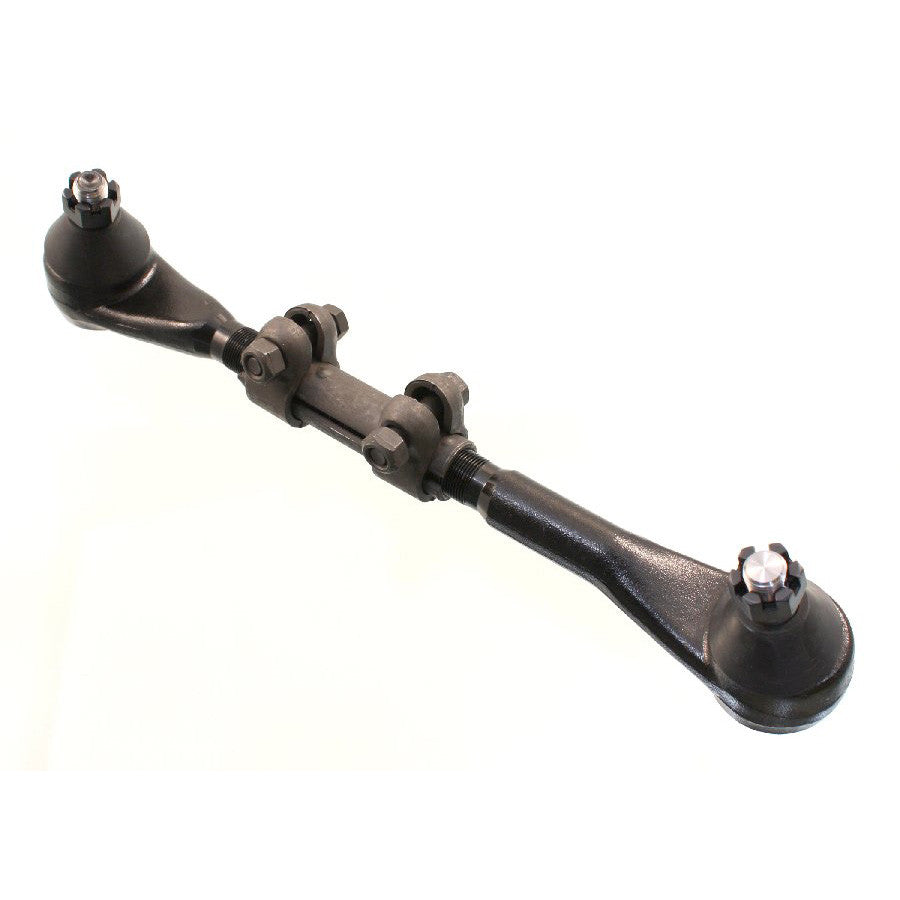

Rare Parts Drag Link 1970 Chevy GMC K15 K20 K25 K1500 K2500 Suburban Jimmy 28289

Rare Parts Drag Link

Part Number #28289 or RP28289

Fits: 1970 Chevy/GMC K15/K20/K25/K1500/K2500, Pickup, Suburban and Jimmy

Specifications:
Drag Link Dia.    1.125
Length     Adjustable
Min Length    14.625
Max Length    16.5
# of Studs    2
# of Holes    0
# of Tapered Holes    0
Stud 1 Small Taper    0.717
Stud 1 Large Taper    0.795
Stud 1 Thread Size    5/8-18
Stud 2 Small Taper    0.717
Stud 2 Large Taper    0.795
Stud 2 Thread Size    5/8-18
Stud Length    0.625
Adjustable    Yes
Greaseable    Yes
Grease Fittings Included    Yes
Tie Rod Connection    No
Package Contents    1 Drag Link Assy, 2 Dust Boots, 2 Castle Nuts, 2 Cotter Pins, 2 Grease Fittings

Fits:
1970; GMC; Jimmy 4WD Front
1970; GMC; Jimmy AWD Front
1970; Chevrolet; K20 Pickup Front 3/4 Ton
1970; Chevrolet; K20 Suburban Front 3/4 Ton
1970; GMC; K15/K1500 Pickup 4WD Front 1/2 TON
1970; GMC; K15/K1500 Suburban 4WD Front 1/2 TON
1970; GMC; K25/K2500 Pickup Front
1970; GMC; K25/K2500 Suburban Front
