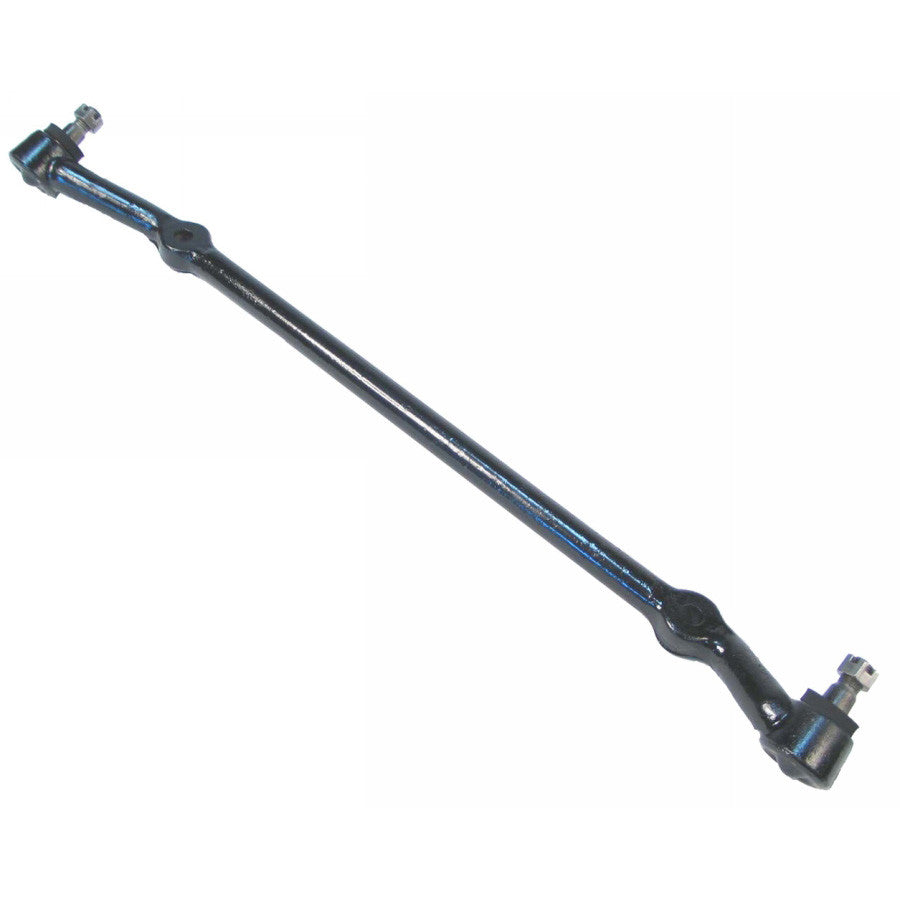

Rare Parts Center Link 1963-1964 Oldsmobile 98 Super 88 Fiesta Dynamic Starfire Jetstar Pow 25736

Rare Parts Center Link
1963-1964 Oldsmobile (See Extended Description below for full application information)
Includes New Castle Nuts
Rare Parts #25736 or RP25736

NOTE: Fits Vehicles Equipped With Power Steering only
NOTE: Saginaw Design~ W/O step in sump area of oil pan. Measure the small diameter of the Center Link stud that attaches to the Pitman Arm. Saginaw Design = .587". There are 6 different center Links used on these vehicles. If this is incorrect contact us we can direct you to the correct part.

Specifications:
Shaft Diameter    0.868
Length Center to Center Studs    24.938
Number of Holes    2
Hole Sizes    0.533
Pitman Arm End to Hole 1    3.750
Pitman Arm End to Hole 2    20.250
Adjustable    No
Greaseable    No
Package Contents    1 Center Link, 2 Dust Seals, 2 Castle Nuts, 2 Cotter Pins


Fits:
1963; Oldsmobile; 98 Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; 98 Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Super 88 Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Super 88 Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Fiesta Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Starfire Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Starfire Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1963; Oldsmobile; Dynamic Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Dynamic Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Jetstar 88 Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
1964; Oldsmobile; Jetstar I Saginaw Design~ W/o step in sump area of oil pan~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
