Hays SFI Certified Steel Flexplate Big Block Ford 1966-1970 332-428 FE 1968-1978 429-460 40-516
Hays SFI Certified Steel Flexplate Big Block Ford 1966-1970 332-428 FE 1968-1978 429-460 40-516
SKU:CLR-HYS-40-516
Regular price
$134.99
Regular price
Sale price
$134.99
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability

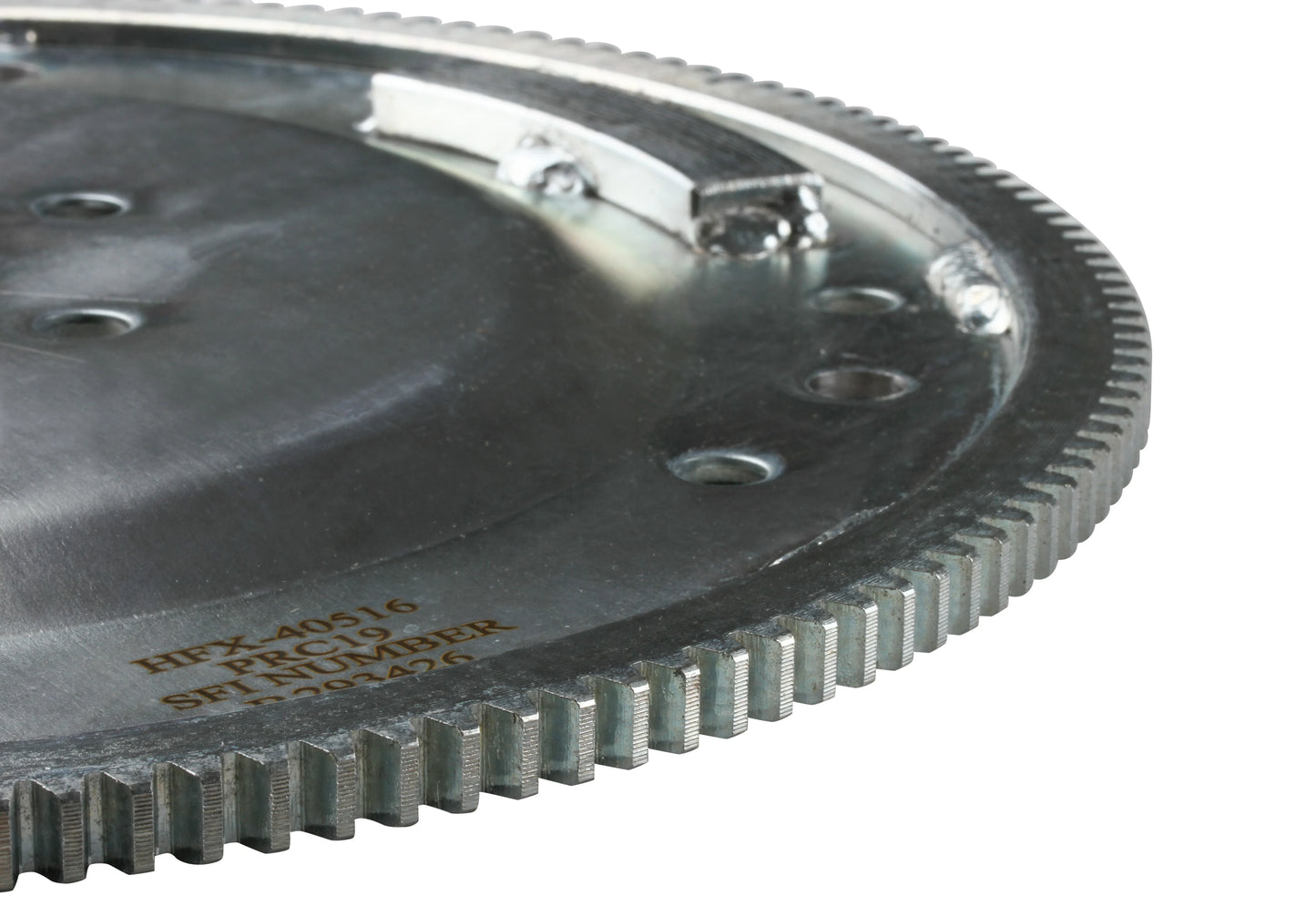

Hays SFI Certified Steel Flexplate
Hays Part Number #40-516
Fits: 1966-1970 Ford FE 332-428
1968-1978 Ford 385 Series 429-460
NOTE: Flexplate has Both Ford and GM Converter Bolt Patterns
Hays SFI Approved heavy-duty Flexplates are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Features:
- SFI-approved – legal for use in racing classes that require SFI certification
- Flexplate features a precision double welded ring gear
- Has 4mm thick center plate to resist cracking near crankshaft flange
- Zinc-dichromate plated to resist corrosion
- CAD designed to provide optimum performance and reliability
Specifications:
# of Teeth: 164
Application: Ford
Bolt Pattern: Ford 11-7/16"
GM 10-3/4"
GM 11-1/2"
Brand: Hays
Centerplate Thickness: 4 mm
Engine Balance: External
Finish: Silver
Material: Steel
SFI Approved: Yes
SFI Certification: 29.1
