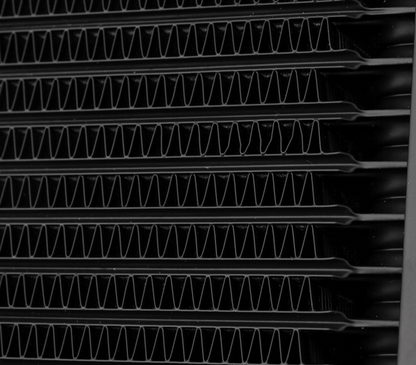

Earl's UltraPro Wide Oil Cooler 13 Row -16 AN Male Ports Black 413-16ERL

Earl's UltraPro Oil Cooler

Earl's Part Number #413-16ERL

Specifications:
Application    Engine Oil Cooler
Body Width (Overall)    13.000"
Brackets Included    No
Brand        Earl's
Construction    Stacked Plate - Brazed
Cooler Fittings    Not Required
Cooler Fittings Included    Yes
Emission Code    5
Engine HP Range    170-200 HP
Engine Oil BTU Range    19,000-26,000
Finish    Black
Fitting Centers    9.530"
Height    3.940"
Material    Aluminum
Mounting Bracket Width    12.200"
Mounting Brackets    400ERL

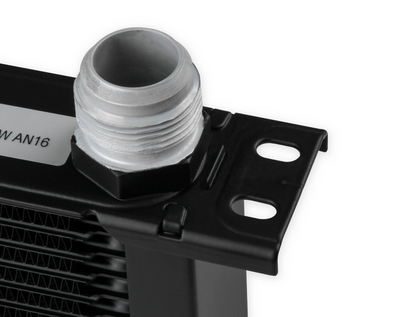

Port Size    16 AN MALE
Rows    13 Rows
Thickness    2.000"
Volume    .25 Quarts
Weight    1.90 Lbs
Width    Wide
Cooler Width (Less Mounting Ears)    11.125"

Features:

• Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
• Made Using State of the Art Brazing Technology
• Highly Efficient Design w/ Minimal Pressure Drop
• Extremely Durable Lightweight Aluminum Construction w/Black Finish
• (3) Width Options – Narrow 8.25”, Wide 12.99”, and Extra Wide 15.94” Overall Width
• (10) Height Options - w/ 7 to 60 Rows (2.09” to 18.31” Tall)
• (3) Fan Pack Style Coolers Include the Oil Cooler, Spal® Cooling Fan(s) & Shroud
• Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
• (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
• Optional Mounting Brackets – Sold Separately
