Competition Cams Xtreme Energy Camshaft Kit 1969-1995 Ford 351W 351 W K35-230-3

SKU:CLR-COM-K35-230-3

$391.95

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Out of stock

Competition Cams - Xtreme Energy Camshaft Kit

P/N K35-230-3

Fits: 1969-1995 Ford 351W Small Block Engines

Cam Style: Hydraulic flat tappet

Basic Operating RPM Range: 600-4,800

Intake Duration at 050 inch Lift: 206

Exhaust Duration at 050 inch Lift: 212

Duration at 050 inch Lift: 206 int./212 exh.

Advertised Intake Duration: 250

Advertised Exhaust Duration: 260

Advertised Duration: 250 int./260 exh.

Intake Valve Lift with Factory Rocker Arm Ratio: 0.461 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.474 in.

Valve Lift with Factory Rocker Arm Ratio: 0.461 int./0.474 exh.

Lobe Separation (degrees): 110

Grind Number: FW XE250H-10

Computer-Controlled Compatible: No

Lifters Included: Yes

Lifter Style: Hydraulic flat tappet

Valve Springs Included: Yes

Outside Diameter of Outer Spring (in): 1.437 in.

Retainers Included: Yes

Locks Included: Yes

Valve Stem Seals Included: Yes

Timing Chain and Gears Included: Yes

Timing Chain Style: Double non-roller

Assembly Lubricant Included: Yes

Pushrods Included: No

Rocker Arms Included: No

Gaskets Included: No

Valve Springs Required: No

Quantity: Sold as a kit.

Footnotes: 33 - Pre-1972 engines use Timing Chain Part number 3220.

COMP Cams Xtreme Energy cam and lifter kits are built to take advantage of the latest cam technology and provide maximum performance. Whether your use is off-roading, towing, or street performance, there are Xtreme Energy cam and lifter kits available for you. By using an aggressive lobe profile, they provide better throttle response and more top-end horsepower than equivalent kits from other manufacturers, while delivering increased engine vacuum.

Features:

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty

Component	Part Number
Complete K-Kit	K35-230-3
Rocker Pushrod RP-Kit (Recommended-Not Included)	RPM1436-16 [35]
Lifter Kit	832-16

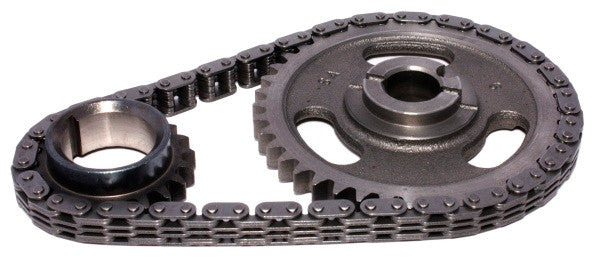

Timing Set	3230 [33]
Rocker Arms (Recommended-Not Included)	1431-16 [35,56] / 1331-16 [1]
Push Rods (Recommended-Not Included)	7835-16 / 7472-16
Valve Springs	942-16
Steel Retainers	768-16 [3]
Valve Locks	601-16
Valve Seals	502-16
Camshaft Break-In Lube	159

Installation Notes (These notes apply to the above recommended components with the trailing installation note numbers)
Note	Description
1	[1] Requires screw-in studs & guide plates.
3	[3] Valve Spring Oil Shield Available
33	[33] Pre-’72 engines use part #3220.
35	[35] Part #4504 studs required for ‘78-present.
56	[56] If equipped with studs and guide plates use part #1442-16.
