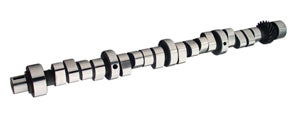

Comp Cams Hydraulic Roller Camshaft 1988-1991 Chrysler 360 20-624-9

Comp Cams Hydraulic Roller Camshaft

Comp Cams Part Number #20-624-9

Fits: 1988-1991 Chrysler 360 Computer Controlled
With Shaft Rockers & Electric Fuel Pump, Short Snout

Specifications:
RPM Operating Range     900-5,200
Cam Type     Hydraulic Roller
Camshaft Series     Computer Controlled
Camshaft Gear Attachment     1-Bolt
Advertised Intake Duration     264
Advertised Exhaust Duration     274
Intake Duration at .050 Inch Lift     210
Exhaust Duration at .050 Inch Lift     220
Intake Valve Lift     0.48
Exhaust Valve Lift     0.48
Lobe Separation     112
Valve Timing Lift     0.006
Exhaust Close ATDC     21
Intake Open BTDC     24
Exhaust Open BBDC     73
Intake Close ABDC     60
Lifter Style     Hydraulic Roller
NOTES: Stock Springs Cannot Be Used
Will Require Computer Modification
