ARP General Replacement Connecting Rod Bolt Kit For Aluminum Rods 200-6004

ARP Connecting Rod Bolt Kit

#200-6004 or 2006004

Fits: General Replacement For Aluminum Rods

Material: 8740 Chrome-Moly
Head Style: E
Bolt Quantity: 16
Washers Included: Yes
Nuts Included: No(Cap Screw Type)
Yield Strength: 180,000 PSI
Tensile Strength: 200,000 PSI

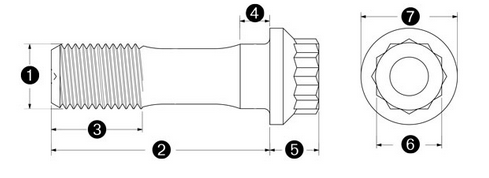

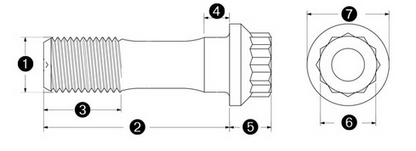

Specifications: (See Specs Image)
Material    8740
1) Thread Size    7/16˝
2) UHL    2.000˝
3) Thread Length    1.250˝
4) Grip Length    0.750˝
5) Head Height    0.388˝
6) Socket Size    7/16 12pt
7) Collar Dia.    0.644˝

8740 Chrome Moly: Until the development of today’s modern alloys, chrome moly was popularly considered a high strength material. Now viewed as only moderate strength, 8740 chrome moly is seen as a good tough steel, with adequate fatigue properties for most racing applications, but only if the threads are rolled after heat-treatment, as is the standard ARP production practice. Typically, chrome moly is classified as a quench and temper steel, that can be heat-treated to deliver tensile strengths between 180,000 and 210,000 psi.
